Step1: Product

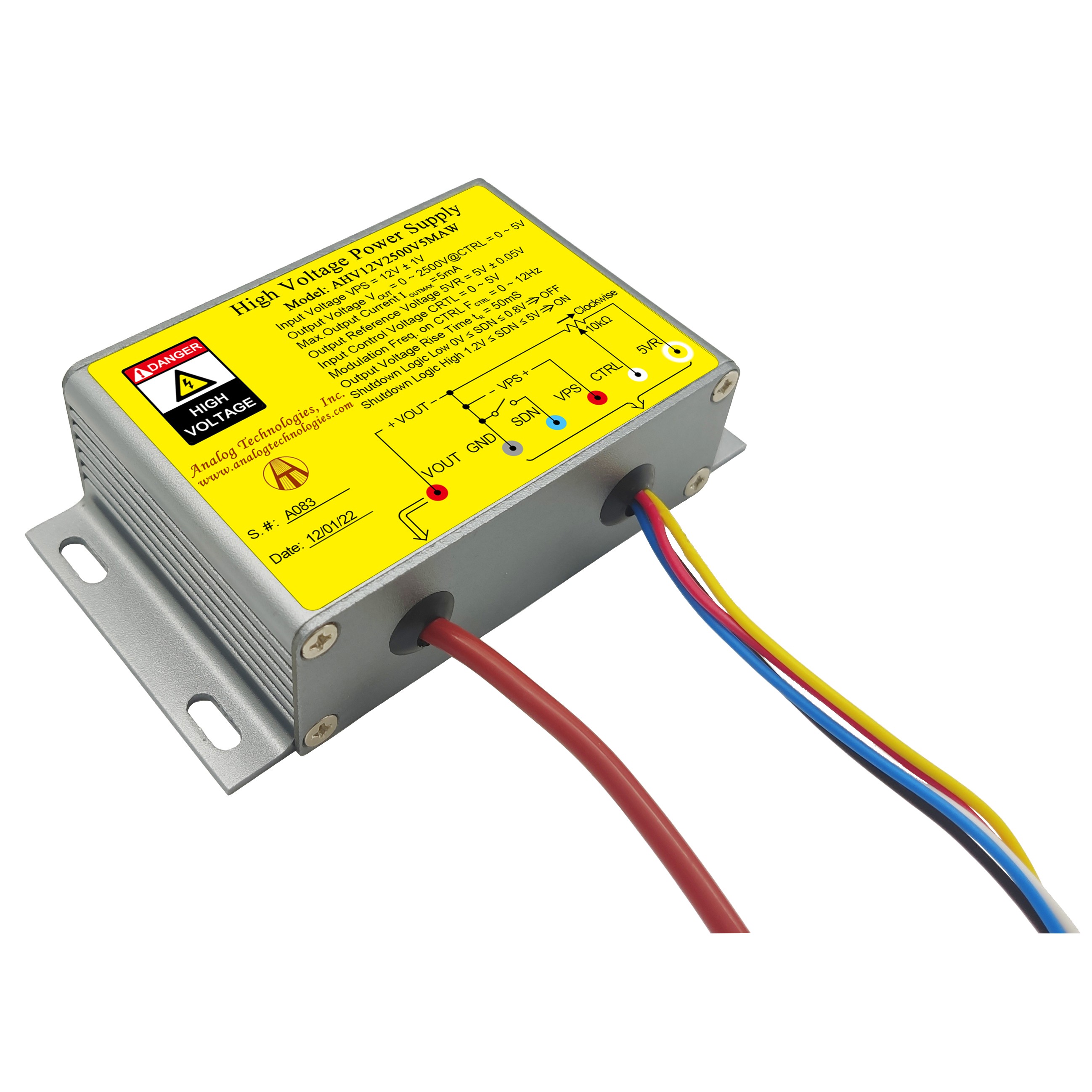

Analog Technologies, Inc. AHV12V2500V5MAW
Image shown is a representation only
Manufacturer
Manufacturer No
AHV12V2500V5MAW
Packaging
Box
Description
HV 12V TO 2.5KV 12.5W DC-DC CONV
Detailed Description
Enclosed DC DC Converter 1 Output 0 ~ 2500V 5mA 13V Input
Datasheet
Type
Enclosed
Packaging
Box
Efficiency
70%
Applications
ITE (Commercial)
Manufacturer
Analog Technologies, Inc.
Mounting Type
Chassis Mount
Power (Watts)
12.5W
Size / Dimension
3.23" L x 2.17" W x 1.10" H (82.0mm x 55.1mm x 27.9mm)
Number of Outputs
1
Voltage - Output 1
0 ~ 2500V
Operating Temperature
-10°C ~ 55°C
Voltage - Input (Max)
13V
Voltage - Input (Min)
11V
Current - Output (Max)
5mA
| Attribute | Value |
|---|---|
| Type | Enclosed |
| Packaging | Box |
| Efficiency | 70% |
| Applications | ITE (Commercial) |
| Manufacturer | Analog Technologies, Inc. |
| Mounting Type | Chassis Mount |
| Power (Watts) | 12.5W |
| Size / Dimension | 3.23" L x 2.17" W x 1.10" H (82.0mm x 55.1mm x 27.9mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0 ~ 2500V |
| Operating Temperature | -10°C ~ 55°C |
| Voltage - Input (Max) | 13V |
| Voltage - Input (Min) | 11V |
| Current - Output (Max) | 5mA |
