Analog Power Inc. AM4874N

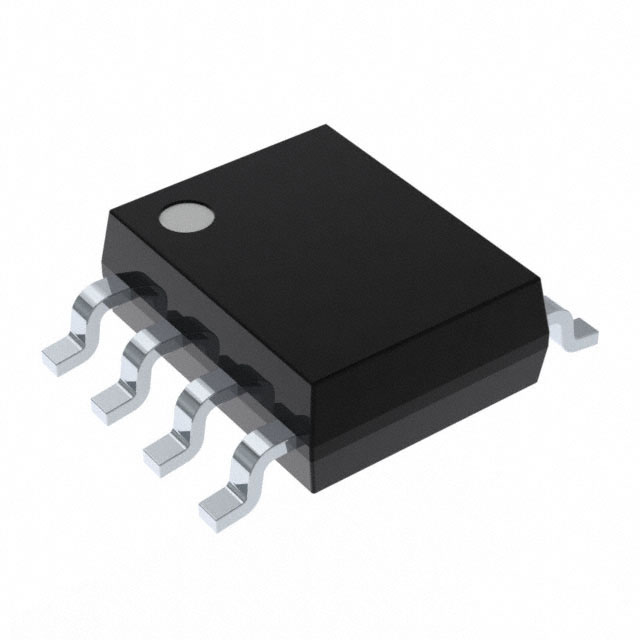

Image shown is a representation only
Manufacturer
Manufacturer No
AM4874N
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Strip
Description
MOSFET N-CH 30V 16.8A SOIC-8
Detailed Description
N-Channel 30 V 16.8A (Ta) 3.1W (Ta) Surface Mount 8-SOIC
DataSheet
Mfr
Analog Power Inc.
FET Type
N-Channel
Packaging
Strip
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Vgs(th) (Max) @ Id
1V @ 250µA
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
12mOhm @ 10.8A, 4.5V
Power Dissipation (Max)
3.1W (Ta)
Supplier Device Package
8-SOIC
Gate Charge (Qg) (Max) @ Vgs
15 nC @ 4.5 V
Drain to Source Voltage (Vdss)
30 V
Input Capacitance (Ciss) (Max) @ Vds
1456 pF @ 15 V
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Current - Continuous Drain (Id) @ 25°C
16.8A (Ta)
| Attribute | Value |
|---|---|
| Mfr | Analog Power Inc. |
| FET Type | N-Channel |
| Packaging | Strip |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 10.8A, 4.5V |
| Power Dissipation (Max) | 3.1W (Ta) |
| Supplier Device Package | 8-SOIC |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 30 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1456 pF @ 15 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 16.8A (Ta) |
