Analog Devices Inc. LTC3780EG#PBF

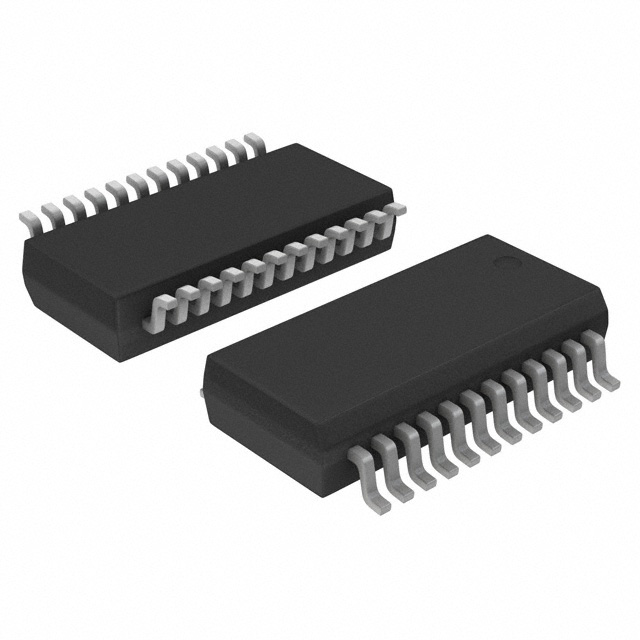

Image shown is a representation only
Manufacturer
Manufacturer No
LTC3780EG#PBF
Quantity
31
Availability
In Stock
Package
24-SSOP (0.209", 5.30mm Width)
Packaging
Tube
Description
IC REG CTRLR BUCK-BOOST 24SSOP
Detailed Description
Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 24-SSOP
DataSheet
Function
Step-Up/Step-Down
Topology
Buck-Boost
Packaging
Tube
Clock Sync
No
Output Type
Transistor Driver
Part Status
Active
Manufacturer
Analog Devices Inc.
Mounting Type
Surface Mount
Output Phases
1
Package / Case
24-SSOP (0.209", 5.30mm Width)
Control Features
Current Limit, Enable, Power Good, Soft Start
Duty Cycle (Max)
99%
Number of Outputs
1
Base Product Number
LTC3780
Output Configuration
Positive
Frequency - Switching
200kHz ~ 400kHz
Operating Temperature
-40°C ~ 85°C (TJ)
Synchronous Rectifier
Yes
Supplier Device Package
24-SSOP
Voltage - Supply (Vcc/Vdd)
4V ~ 30V
| Attribute | Value |
|---|---|
| Function | Step-Up/Step-Down |
| Topology | Buck-Boost |
| Packaging | Tube |
| Clock Sync | No |
| Output Type | Transistor Driver |
| Part Status | Active |
| Manufacturer | Analog Devices Inc. |
| Mounting Type | Surface Mount |
| Output Phases | 1 |
| Package / Case | 24-SSOP (0.209", 5.30mm Width) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Duty Cycle (Max) | 99% |
| Number of Outputs | 1 |
| Base Product Number | LTC3780 |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 400kHz |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 24-SSOP |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 30V |
