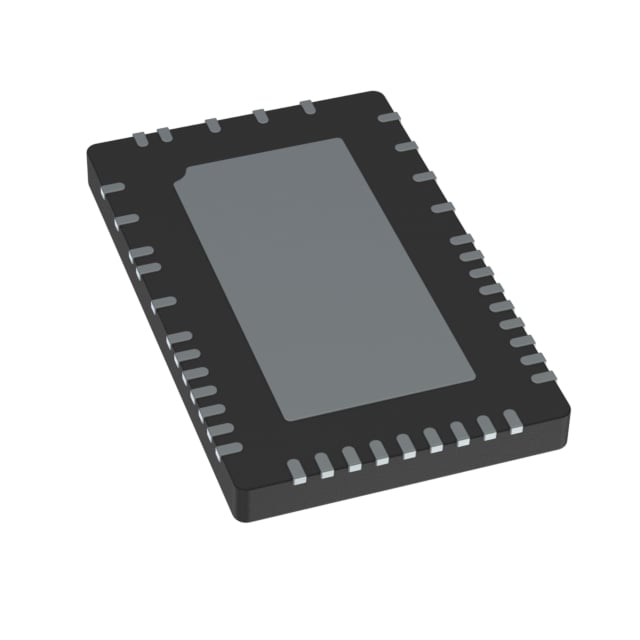

Analog Devices Inc. LT3596EUHG#PBF
Image shown is a representation only
Manufacturer
Manufacturer No
LT3596EUHG#PBF
Package
52-WFQFN, 39 Leads, Exposed Pad
Packaging
Tube
Description
IC LED DRV RGLTR PWM 100MA 52QFN
Detailed Description
LED Driver IC 3 Output DC DC Regulator Step-Down (Buck) PWM Dimming 100mA 52-QFN (5x8)
DataSheet
Type
DC DC Regulator
Dimming
PWM
Topology
Step-Down (Buck)
Frequency
200kHz ~ 1MHz
Packaging
Tube
Part Status
Active
Applications
Backlight, Signage
Manufacturer
Analog Devices Inc.
Mounting Type
Surface Mount
Package / Case
52-WFQFN, 39 Leads, Exposed Pad
Number of Outputs
3
Internal Switch(s)
Yes
Base Product Number
LT3596
Operating Temperature
-40°C ~ 125°C (TJ)
Voltage - Supply (Max)
55V
Voltage - Supply (Min)
6V
Supplier Device Package
52-QFN (5x8)
Current - Output / Channel
100mA
| Attribute | Value |
|---|---|
| Type | DC DC Regulator |
| Dimming | PWM |
| Topology | Step-Down (Buck) |
| Frequency | 200kHz ~ 1MHz |
| Packaging | Tube |
| Part Status | Active |
| Applications | Backlight, Signage |
| Manufacturer | Analog Devices Inc. |
| Mounting Type | Surface Mount |
| Package / Case | 52-WFQFN, 39 Leads, Exposed Pad |
| Number of Outputs | 3 |
| Internal Switch(s) | Yes |
| Base Product Number | LT3596 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply (Max) | 55V |
| Voltage - Supply (Min) | 6V |
| Supplier Device Package | 52-QFN (5x8) |
| Current - Output / Channel | 100mA |
