Step1: Product

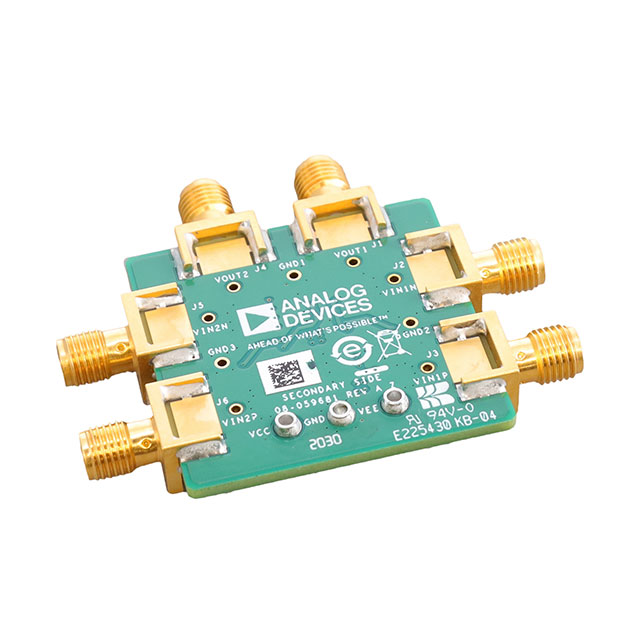

Analog Devices Inc. EVAL-LTC6229MS8E
Image shown is a representation only
Manufacturer
Manufacturer No
EVAL-LTC6229MS8E
Packaging
Box
Description
EVAL BOARD FOR LTC6229
Detailed Description
LTC6229 - 2 - Dual Channels per IC Standard (General Purpose) Amplifier Evaluation Board
Datasheet
Contents
Board(s)
Packaging
Box
Slew Rate
500V/µs
Output Type
Single-Ended, Rail-to-Rail
Manufacturer
Analog Devices Inc.
-3db Bandwidth
730MHz
Amplifier Type
Standard (General Purpose)
Channels per IC
2 - Dual
Utilized IC / Part
LTC6229
Base Product Number
LTC6229
Gain Bandwidth Product
890MHz
Current - Output / Channel
140mA
Current - Supply (Main IC)
16mA
Voltage - Supply, Single/Dual (±)
2.8V ~ 11.75V, ±1.4V ~ 5.875V
| Attribute | Value |
|---|---|
| Contents | Board(s) |
| Packaging | Box |
| Slew Rate | 500V/µs |
| Output Type | Single-Ended, Rail-to-Rail |
| Manufacturer | Analog Devices Inc. |
| -3db Bandwidth | 730MHz |
| Amplifier Type | Standard (General Purpose) |
| Channels per IC | 2 - Dual |
| Utilized IC / Part | LTC6229 |
| Base Product Number | LTC6229 |
| Gain Bandwidth Product | 890MHz |
| Current - Output / Channel | 140mA |
| Current - Supply (Main IC) | 16mA |
| Voltage - Supply, Single/Dual (±) | 2.8V ~ 11.75V, ±1.4V ~ 5.875V |
