Step1: Product
Analog Devices Inc. DC2297A-A

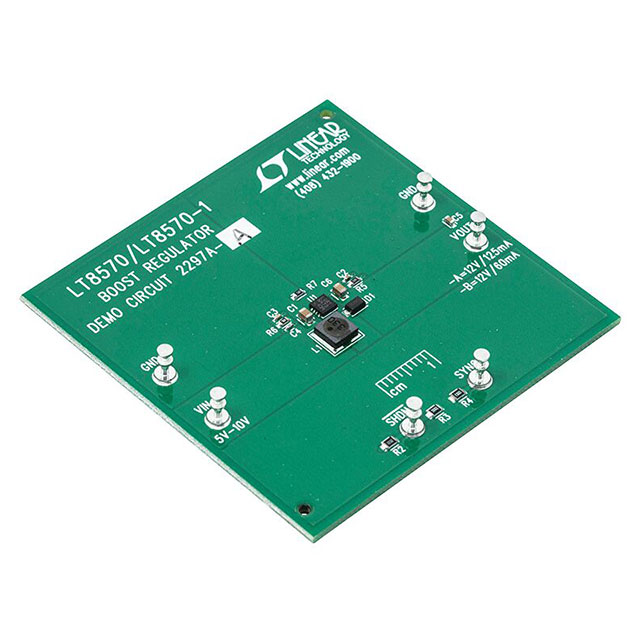

Image shown is a representation only
Manufacturer
Manufacturer No
DC2297A-A
Packaging
Box
Description
EVAL BOARD FOR LT8570 LT85701
Detailed Description
LT8570, LT8570-1 - 1 Non-Isolated Output DC/DC, Step Up Evaluation Board
Datasheet
Contents
Board(s)
Packaging
Box
Main Purpose
DC/DC, Step Up
Manufacturer
Analog Devices Inc.
Voltage - Input
5V ~ 10V
Current - Output
60mA, 125mA
Outputs and Type
1 Non-Isolated Output
Voltage - Output
12V, 12V
Regulator Topology
Boost
Utilized IC / Part
LT8570, LT8570-1
Base Product Number
DC2297
Frequency - Switching
1.5MHz
| Attribute | Value |
|---|---|
| Contents | Board(s) |
| Packaging | Box |
| Main Purpose | DC/DC, Step Up |
| Manufacturer | Analog Devices Inc. |
| Voltage - Input | 5V ~ 10V |
| Current - Output | 60mA, 125mA |
| Outputs and Type | 1 Non-Isolated Output |
| Voltage - Output | 12V, 12V |
| Regulator Topology | Boost |
| Utilized IC / Part | LT8570, LT8570-1 |
| Base Product Number | DC2297 |
| Frequency - Switching | 1.5MHz |
