Step1: Product
Analog Devices Inc. ADSP-BF536BBCZ-4B

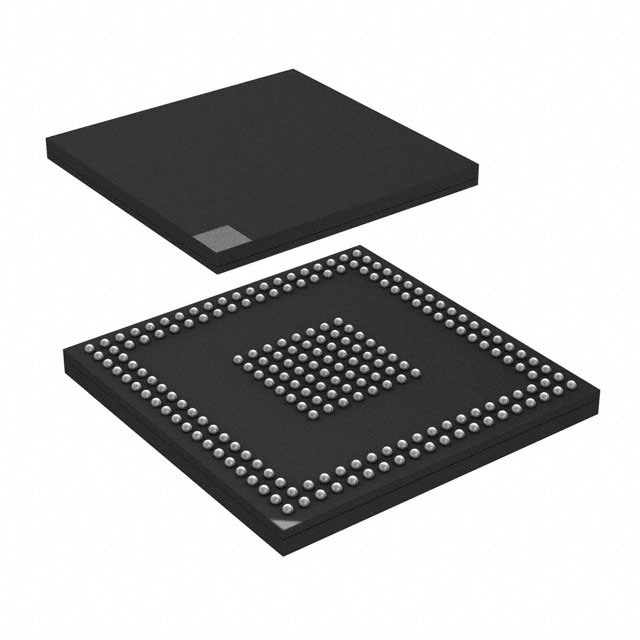

Image shown is a representation only
Manufacturer
Manufacturer No
ADSP-BF536BBCZ-4B
Date Code
21+
Quantity
5,500
Availability
In Stock
Package
208-FBGA, CSPBGA
Packaging
Tray
Description
IC DSP CTLR 16BIT 208CSBGA
Detailed Description
Fixed Point Digital Signal Processor (DSP) 400MHz 208-CSPBGA (17x17)
Datasheet
Type
Fixed Point
Series
Blackfin®
Interface
CAN, SPI, SSP, TWI, UART
Packaging
Tray
Clock Rate
400MHz
On-Chip RAM
100kB
Manufacturer
Analog Devices Inc.
Mounting Type
Surface Mount
Voltage - I/O
2.50V, 3.30V
Package / Case
208-FBGA, CSPBGA
Voltage - Core
1.20V
Base Product Number
ADSP-BF536
Non-Volatile Memory
External
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
208-CSPBGA (17x17)
| Attribute | Value |
|---|---|
| Type | Fixed Point |
| Series | Blackfin® |
| Interface | CAN, SPI, SSP, TWI, UART |
| Packaging | Tray |
| Clock Rate | 400MHz |
| On-Chip RAM | 100kB |
| Manufacturer | Analog Devices Inc. |
| Mounting Type | Surface Mount |
| Voltage - I/O | 2.50V, 3.30V |
| Package / Case | 208-FBGA, CSPBGA |
| Voltage - Core | 1.20V |
| Base Product Number | ADSP-BF536 |
| Non-Volatile Memory | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 208-CSPBGA (17x17) |
