Step1: Product
Analog Devices Inc. ADP7183ACPZN1.2-R7

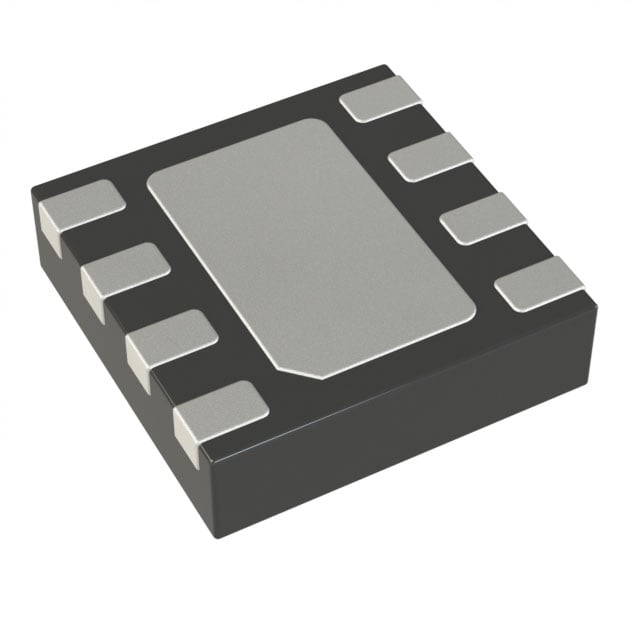

Image shown is a representation only
Manufacturer
Manufacturer No
ADP7183ACPZN1.2-R7
Package
8-UFDFN Exposed Pad, CSP
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC REG LIN -1.2V 300MA 8-LFCSP
Detailed Description
Linear Voltage Regulator IC Negative Fixed 1 Output 300mA 8-LFCSP (2x2)
DataSheet
Mfr
Analog Devices Inc.
PSRR
85dB ~ 40dB (1kHz ~ 1MHz)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Output Type
Fixed
Part Status
Active
Mounting Type
Surface Mount
Package / Case
8-UFDFN Exposed Pad, CSP
Control Features
Enable
Current - Output
300mA
Base Product Number
ADP7183
Protection Features
Current Limit, Thermal Overload
Number of Regulators
1
Output Configuration
Negative
Operating Temperature
-40°C ~ 125°C (TJ)
Voltage - Input (Max)
-5.5V
Voltage Dropout (Max)
0.22V @ 300mA
Current - Supply (Max)
7 mA
Supplier Device Package
8-LFCSP (2x2)
Current - Quiescent (Iq)
900 µA
Voltage - Output (Min/Fixed)
-1.2V
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc. |
| PSRR | 85dB ~ 40dB (1kHz ~ 1MHz) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Output Type | Fixed |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad, CSP |
| Control Features | Enable |
| Current - Output | 300mA |
| Base Product Number | ADP7183 |
| Protection Features | Current Limit, Thermal Overload |
| Number of Regulators | 1 |
| Output Configuration | Negative |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Input (Max) | -5.5V |
| Voltage Dropout (Max) | 0.22V @ 300mA |
| Current - Supply (Max) | 7 mA |
| Supplier Device Package | 8-LFCSP (2x2) |
| Current - Quiescent (Iq) | 900 µA |
| Voltage - Output (Min/Fixed) | -1.2V |
