Step1: Product
Analog Devices Inc. ADP220ACBZ275275R7

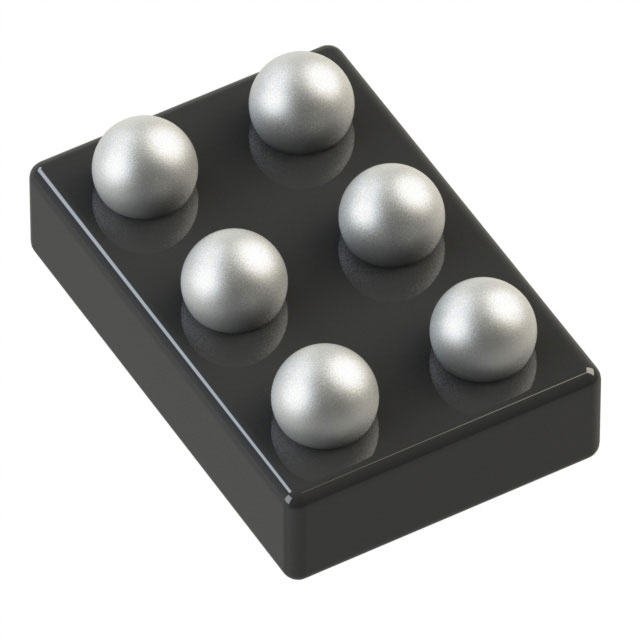

Image shown is a representation only
Manufacturer
Manufacturer No
ADP220ACBZ275275R7
Package
6-WFBGA, WLCSP
Packaging
Tape & Reel (TR)
Description
IC REG LINEAR 2.75/2.75V 6-WLCSP
Detailed Description
Linear Voltage Regulator IC Positive Fixed 2 Output 200mA 6-WLCSP (1.45x0.95)
Datasheet
Mfr
Analog Devices Inc.
Packaging
Tape & Reel (TR)
Output Type
Fixed
Mounting Type
Surface Mount
Package / Case
6-WFBGA, WLCSP
Control Features
Enable
Current - Output
200mA
Base Product Number
ADP220
Protection Features
Over Current, Over Temperature
Number of Regulators
2
Output Configuration
Positive
Operating Temperature
-40°C ~ 125°C (TJ)
Voltage - Input (Max)
5.5V
Voltage Dropout (Max)
0.23V @ 200mA, 0.23V @ 200mA
Current - Supply (Max)
220 µA
Supplier Device Package
6-WLCSP (1.45x0.95)
Current - Quiescent (Iq)
120 µA
Voltage - Output (Min/Fixed)
2.75V, 2.75V
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc. |
| Packaging | Tape & Reel (TR) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFBGA, WLCSP |
| Control Features | Enable |
| Current - Output | 200mA |
| Base Product Number | ADP220 |
| Protection Features | Over Current, Over Temperature |
| Number of Regulators | 2 |
| Output Configuration | Positive |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Input (Max) | 5.5V |
| Voltage Dropout (Max) | 0.23V @ 200mA, 0.23V @ 200mA |
| Current - Supply (Max) | 220 µA |
| Supplier Device Package | 6-WLCSP (1.45x0.95) |
| Current - Quiescent (Iq) | 120 µA |
| Voltage - Output (Min/Fixed) | 2.75V, 2.75V |
