Step1: Product
Analog Devices Inc. AD8340ACPZ-REEL7
Image shown is a representation only
Manufacturer
Manufacturer No
AD8340ACPZ-REEL7
Quantity
5
Availability
In Stock

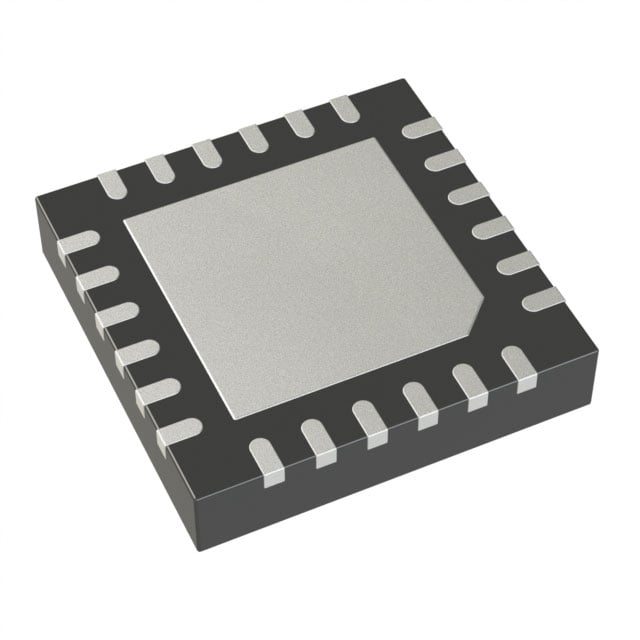

Package
24-WFQFN Exposed Pad, CSP
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF MODULATOR 700MHZ-1GHZ 24WFQFN
Detailed Description
RF Modulator IC 700MHz ~ 1GHz 24-WFQFN Exposed Pad, CSP
Datasheet
P1dB
11dBm
Function
Vector, Modulator
Packaging
Tape & Reel (TR); Cut Tape (CT)
Noise Floor
-149dBm/Hz
LO Frequency
700MHz ~ 1GHz
Manufacturer
Analog Devices Inc.
RF Frequency
700MHz ~ 1GHz
Mounting Type
Surface Mount
Package / Case
24-WFQFN Exposed Pad, CSP
Test Frequency
880MHz
Current - Supply
150 mA
Voltage - Supply
4.75V ~ 5.25V
Base Product Number
AD8340
Supplier Device Package
24-LFCSP-WQ (4x4)
| Attribute | Value |
|---|---|
| P1dB | 11dBm |
| Function | Vector, Modulator |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Noise Floor | -149dBm/Hz |
| LO Frequency | 700MHz ~ 1GHz |
| Manufacturer | Analog Devices Inc. |
| RF Frequency | 700MHz ~ 1GHz |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Test Frequency | 880MHz |
| Current - Supply | 150 mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Base Product Number | AD8340 |
| Supplier Device Package | 24-LFCSP-WQ (4x4) |
