Step1: Product

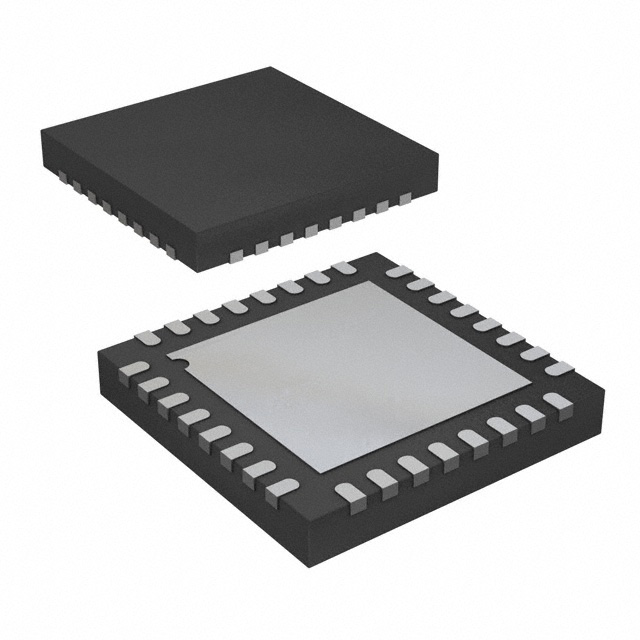

Analog Devices Inc. AD8333ACPZ-REEL7
Image shown is a representation only
Manufacturer
Manufacturer No
AD8333ACPZ-REEL7
Quantity
6
Availability
In Stock
Package
32-WFQFN Exposed Pad, CSP
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF DEMOD IC 0HZ-50MHZ 32LFCSP
Detailed Description
RF Demodulator IC 0Hz ~ 50MHz 32-WFQFN Exposed Pad, CSP
DataSheet
Gain
4.7dB
P1dB
14.5dBm
Function
Demodulator
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
LO Frequency
100kHz ~ 200MHz
Manufacturer
Analog Devices Inc.
Noise Figure
11dB
RF Frequency
0Hz ~ 50MHz
Mounting Type
Surface Mount
Package / Case
32-WFQFN Exposed Pad, CSP
Current - Supply
51 mA
Voltage - Supply
4.5V ~ 6V
Base Product Number
AD8333
Supplier Device Package
32-LFCSP-WQ (5x5)
| Attribute | Value |
|---|---|
| Gain | 4.7dB |
| P1dB | 14.5dBm |
| Function | Demodulator |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| LO Frequency | 100kHz ~ 200MHz |
| Manufacturer | Analog Devices Inc. |
| Noise Figure | 11dB |
| RF Frequency | 0Hz ~ 50MHz |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Current - Supply | 51 mA |
| Voltage - Supply | 4.5V ~ 6V |
| Base Product Number | AD8333 |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
