Step1: Product

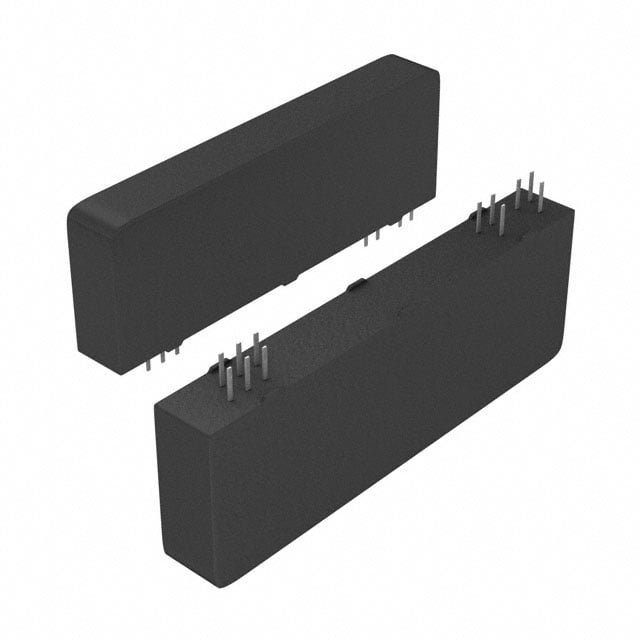

Analog Devices Inc. AD215BY
Image shown is a representation only
Manufacturer
Manufacturer No
AD215BY
Package
44-SIP, 12 Leads, Offset Leads
Packaging
Tube
Description
IC OPAMP ISOLATION 1 CIRC 12SIP
Detailed Description
Isolation Amplifier 1 Circuit 12-SIP
DataSheet
Mfr
Analog Devices Inc.
Packaging
Tube
Slew Rate
6V/µs
Part Status
Obsolete
Mounting Type
Through Hole
-3db Bandwidth
120 kHz
Amplifier Type
Isolation
Package / Case
44-SIP, 12 Leads, Offset Leads
Current - Supply
40mA
Number of Circuits
1
Base Product Number
AD215
Current - Input Bias
300 pA
Operating Temperature
-40°C ~ 85°C
Voltage - Input Offset
400 µV
Supplier Device Package
12-SIP
Current - Output / Channel
5 mA
Voltage - Supply Span (Max)
34 V
Voltage - Supply Span (Min)
28.5 V
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc. |
| Packaging | Tube |
| Slew Rate | 6V/µs |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| -3db Bandwidth | 120 kHz |
| Amplifier Type | Isolation |
| Package / Case | 44-SIP, 12 Leads, Offset Leads |
| Current - Supply | 40mA |
| Number of Circuits | 1 |
| Base Product Number | AD215 |
| Current - Input Bias | 300 pA |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input Offset | 400 µV |
| Supplier Device Package | 12-SIP |
| Current - Output / Channel | 5 mA |
| Voltage - Supply Span (Max) | 34 V |
| Voltage - Supply Span (Min) | 28.5 V |
