Step1: Product

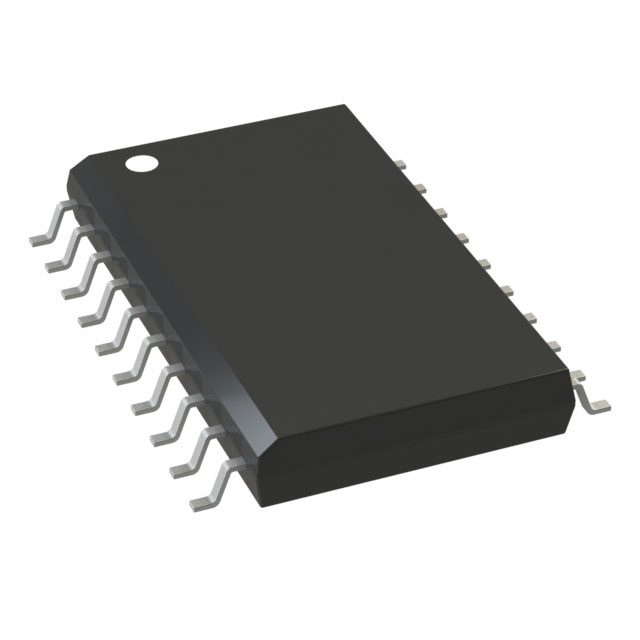

Analog Devices Inc./Maxim Integrated MAX506BCWP+
Image shown is a representation only
Manufacturer
Manufacturer No
MAX506BCWP+
Quantity
5
Availability
In Stock
Package
20-SOIC (0.295", 7.50mm Width)
Packaging
Tube
Description
IC DAC 8BIT 20-SOIC
Detailed Description
8 Bit Digital to Analog Converter 4 20-SOIC
Datasheet
Packaging
Tube
Output Type
Voltage - Buffered
Architecture
R-2R
Manufacturer
Analog Devices Inc./Maxim Integrated
INL/DNL (LSB)
-, ±1 (Max)
Mounting Type
Surface Mount
Settling Time
6µs (Typ)
Data Interface
Parallel
Number of Bits
8
Package / Case
20-SOIC (0.295", 7.50mm Width)
Reference Type
External
Base Product Number
MAX506
Differential Output
No
Operating Temperature
0°C ~ 70°C
Supplier Device Package
20-SOIC
Number of D/A Converters
4
Voltage - Supply, Analog
±5V
Voltage - Supply, Digital
5V
| Attribute | Value |
|---|---|
| Packaging | Tube |
| Output Type | Voltage - Buffered |
| Architecture | R-2R |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| INL/DNL (LSB) | -, ±1 (Max) |
| Mounting Type | Surface Mount |
| Settling Time | 6µs (Typ) |
| Data Interface | Parallel |
| Number of Bits | 8 |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Reference Type | External |
| Base Product Number | MAX506 |
| Differential Output | No |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 20-SOIC |
| Number of D/A Converters | 4 |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
