Analog Devices Inc./Maxim Integrated MAX20049ATED/VY+

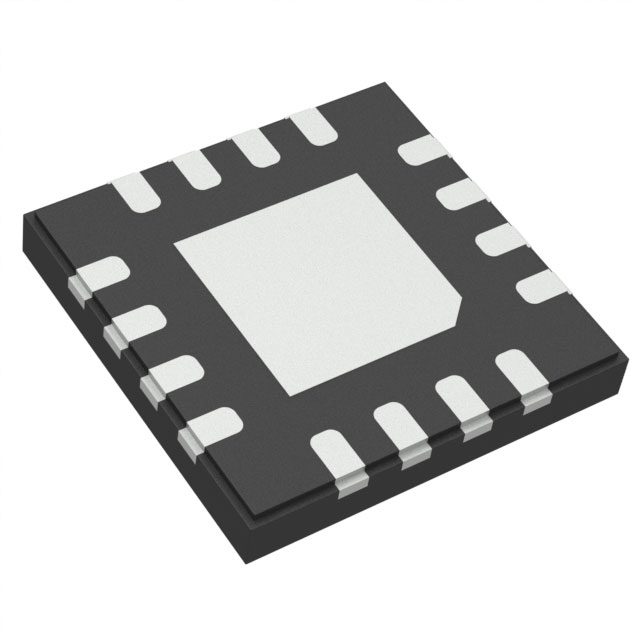

Image shown is a representation only
Manufacturer
Manufacturer No
MAX20049ATED/VY+
Quantity
4
Availability
In Stock
Package
16-WFQFN Exposed Pad
Packaging
Tray
Description
MINI PMIC FOR REMOTE CAMERA POWE
Detailed Description
PMIC - Voltage Regulators - Linear Switching 4 Output Step-Down (Buck) (2), Linear (LDO) (2) 2.2MHz 16-SW-TQFN (3x3)
DataSheet
Grade
Automotive
Topology
Step-Down (Buck) (2), Linear (LDO) (2)
Packaging
Tray
Part Status
Active
w/Sequencer
No
Manufacturer
Analog Devices Inc./Maxim Integrated
w/LED Driver
No
w/Supervisor
No
Mounting Type
Surface Mount, Wettable Flank
Qualification
AEC-Q100
Package / Case
16-WFQFN Exposed Pad
Voltage - Supply
5V ~ 17V
Number of Outputs
4
Base Product Number
MAX20049
Frequency - Switching
2.2MHz
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
16-SW-TQFN (3x3)
Voltage/Current - Output 1
Fixed, Fixed, Fixed, 3V, 500mA
Voltage/Current - Output 2
Fixed, Fixed, Fixed, 3.1V, -
Voltage/Current - Output 3
Fixed, Fixed, Fixed, 3.3V, -
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Topology | Step-Down (Buck) (2), Linear (LDO) (2) |
| Packaging | Tray |
| Part Status | Active |
| w/Sequencer | No |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| w/LED Driver | No |
| w/Supervisor | No |
| Mounting Type | Surface Mount, Wettable Flank |
| Qualification | AEC-Q100 |
| Package / Case | 16-WFQFN Exposed Pad |
| Voltage - Supply | 5V ~ 17V |
| Number of Outputs | 4 |
| Base Product Number | MAX20049 |
| Frequency - Switching | 2.2MHz |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 16-SW-TQFN (3x3) |
| Voltage/Current - Output 1 | Fixed, Fixed, Fixed, 3V, 500mA |
| Voltage/Current - Output 2 | Fixed, Fixed, Fixed, 3.1V, - |
| Voltage/Current - Output 3 | Fixed, Fixed, Fixed, 3.3V, - |
