Step1: Product
Amphenol Tuchel Industrial C01610H0140032

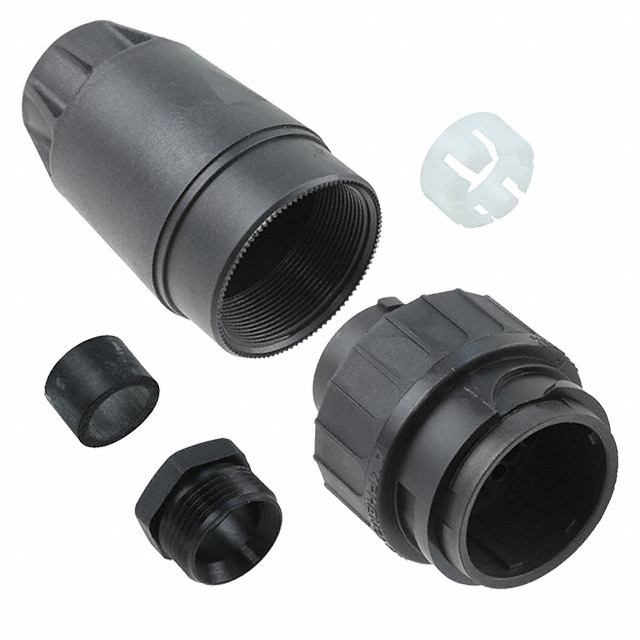

Image shown is a representation only
Manufacturer
Manufacturer No
C01610H0140032
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN PLUG HSNG MALE 15POS INLINE
Detailed Description
15 (14 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
DataSheet
Note
Contacts Sold Separately
Type
For Male Pins
Series
ecomate® C16-3
Features
Backshell, Coupling Nut
Includes
5 pcs - 1 Connector, 1 Backshell, 1 Cable Nut, 1 Cage Clamp, 1 Gasket
Packaging
Bulk
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Contact Size
1.5mm (4), 1.6mm (11)
Contact Type
Crimp
Manufacturer
Amphenol Tuchel Industrial
Contact Shape
Circular
Housing Color
Black
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug Housing
Fastening Type
Bayonet Lock
Shell Material
Polyamide (PA66), Nylon 6/6
Ingress Protection
IP65 - Dust Tight, Water Resistant
Base Product Number
C01610H014
Number of Positions
15 (14 + PE)
Shell Size - Insert
2
Operating Temperature
-40°C ~ 125°C
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately |
| Type | For Male Pins |
| Series | ecomate® C16-3 |
| Features | Backshell, Coupling Nut |
| Includes | 5 pcs - 1 Connector, 1 Backshell, 1 Cable Nut, 1 Cage Clamp, 1 Gasket |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Contact Size | 1.5mm (4), 1.6mm (11) |
| Contact Type | Crimp |
| Manufacturer | Amphenol Tuchel Industrial |
| Contact Shape | Circular |
| Housing Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug Housing |
| Fastening Type | Bayonet Lock |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Base Product Number | C01610H014 |
| Number of Positions | 15 (14 + PE) |
| Shell Size - Insert | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
