Step1: Product

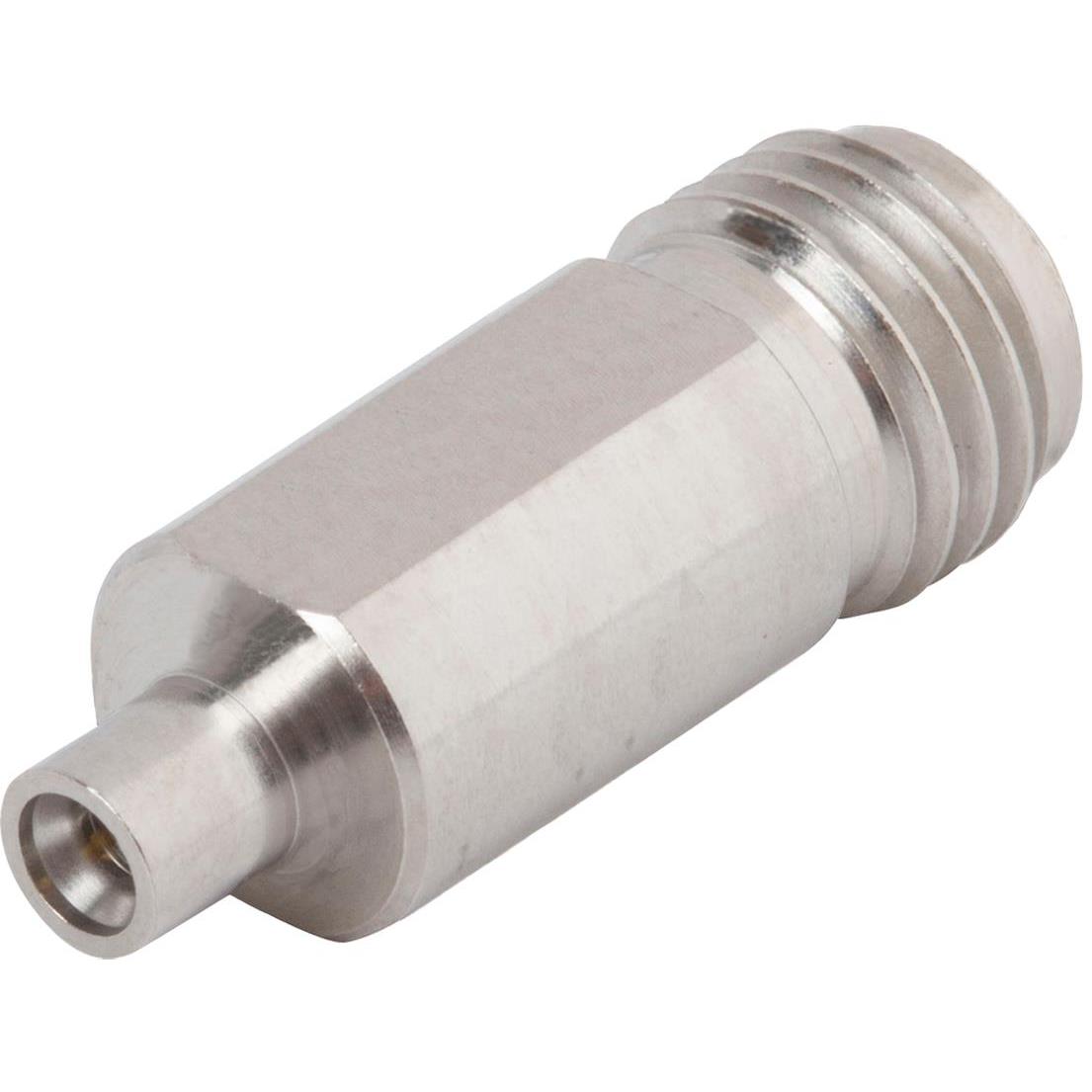

Amphenol SV Microwave 1138-6049
Image shown is a representation only
Manufacturer
Manufacturer No
1138-6049
Packaging
Tray
Description
1.85MM FEMALE TO SMPS MALE ADAPT
Detailed Description
Adapter Coaxial Connector 1.85mm Jack, Female Socket To SMPS Plug, Male Pin 50 Ohms
DataSheet
Mfr
Amphenol SV Microwave
Style
Straight
Series
1.85mm
Features
Smooth Bore
Impedance
50 Ohms
Packaging
Tray
Body Finish
Passivated
Part Status
Active
Adapter Type
Plug to Jack
Body Material
Stainless Steel
Center Gender
Female to Male
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Adapter Series
SMPS to 1.85mm
Fastening Type
Snap-On, Threaded
Conversion Type
Between Series
Frequency - Max
65 GHz
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
SMPS Plug, Male Pin
Convert From (Adapter End)
1.85mm Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | Amphenol SV Microwave |
| Style | Straight |
| Series | 1.85mm |
| Features | Smooth Bore |
| Impedance | 50 Ohms |
| Packaging | Tray |
| Body Finish | Passivated |
| Part Status | Active |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Gender | Female to Male |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | SMPS to 1.85mm |
| Fastening Type | Snap-On, Threaded |
| Conversion Type | Between Series |
| Frequency - Max | 65 GHz |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | SMPS Plug, Male Pin |
| Convert From (Adapter End) | 1.85mm Jack, Female Socket |
