Step1: Product

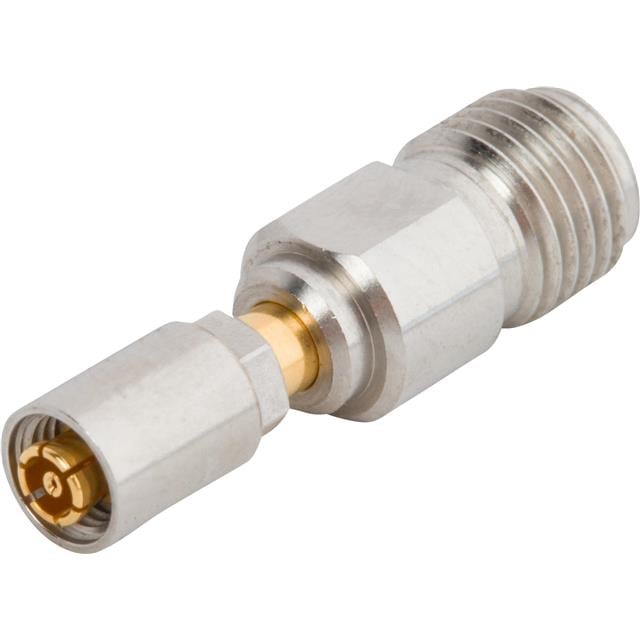

Amphenol SV Microwave 1132-6108
Image shown is a representation only
Manufacturer
Manufacturer No
1132-6108
Packaging
Bag
Description
COAX ADAPT SMPM TO 2.92MM
Detailed Description
Adapter Coaxial Connector SMPM Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
DataSheet
Mfr
Amphenol SV Microwave
Style
Straight
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Part Status
Active
Adapter Type
Jack to Jack
Body Material
Stainless Steel
Center Gender
Female to Female
Mating Cycles
100, 500
Mounting Type
Free Hanging (In-Line)
Adapter Series
SMPM to 2.92mm
Fastening Type
Threaded, Threaded
Conversion Type
Between Series
Frequency - Max
40 GHz
Base Product Number
1132-61
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
2.92mm (OS-2.9) Jack, Female Socket
Convert From (Adapter End)
SMPM Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | Amphenol SV Microwave |
| Style | Straight |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Part Status | Active |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Gender | Female to Female |
| Mating Cycles | 100, 500 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | SMPM to 2.92mm |
| Fastening Type | Threaded, Threaded |
| Conversion Type | Between Series |
| Frequency - Max | 40 GHz |
| Base Product Number | 1132-61 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | 2.92mm (OS-2.9) Jack, Female Socket |
| Convert From (Adapter End) | SMPM Jack, Female Socket |
