Step1: Product
Amphenol Sine Systems Corp ACJC10AV BULK

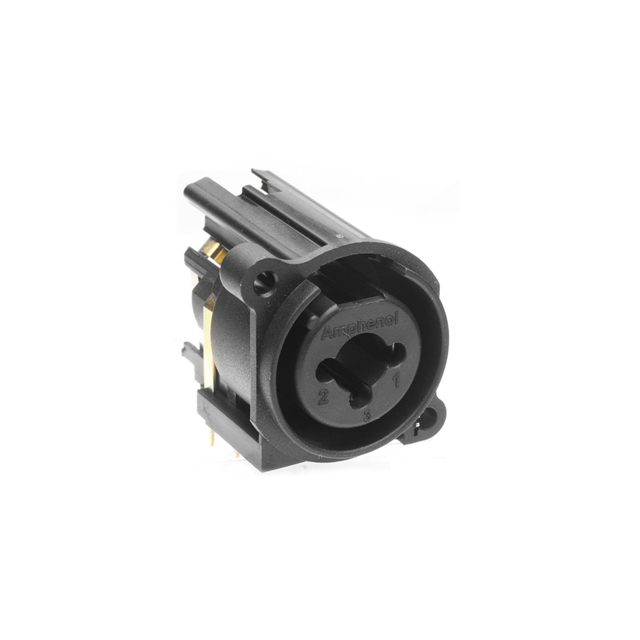

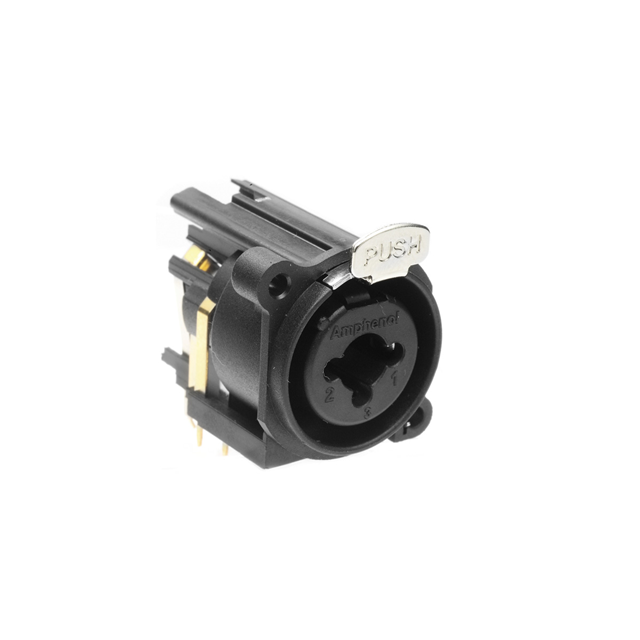

Image shown is a representation only
Manufacturer
Manufacturer No
ACJC10AV BULK
Packaging
Box
Description
1/4" STEREO/XLR PCB VERT 10 SKT
Detailed Description
6.35mm (0.250", 1/4") - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Kinked Pin, Solder
DataSheet
Mfr
Amphenol Sine Systems Corp
Gender
Female
Series
XLRSeries™ AC, C-Type
Features
Board Guide
Packaging
Box
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Kinked Pin, Solder
Signal Lines
Stereo (3 Conductor, TRS)
Mounting Type
Panel Mount, Through Hole
Connector Type
Phone Jack, Dual
Panel Hole Size
0.937" (23.80mm)
Contact Material
Brass, Bronze
Housing Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Internal Switch(s)
Three Switches
Base Product Number
ACJC10
Current Rating (Amps)
7.5 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Gold, Silver
Number of Positions/Contacts
3 Conductors, 11 Contacts
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Gender | Female |
| Series | XLRSeries™ AC, C-Type |
| Features | Board Guide |
| Packaging | Box |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Phone Jack, Dual |
| Panel Hole Size | 0.937" (23.80mm) |
| Contact Material | Brass, Bronze |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Internal Switch(s) | Three Switches |
| Base Product Number | ACJC10 |
| Current Rating (Amps) | 7.5 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Gold, Silver |
| Number of Positions/Contacts | 3 Conductors, 11 Contacts |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
