Step1: Product

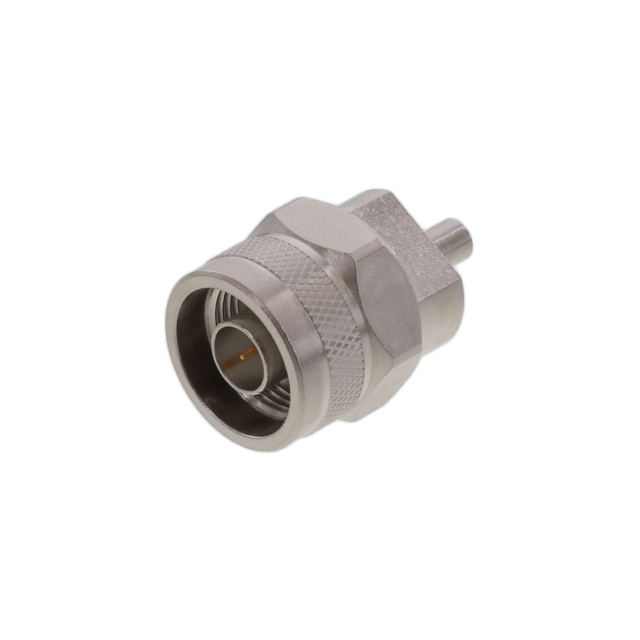

Amphenol RF AD-NPMCXJ-2
Image shown is a representation only
Manufacturer
Manufacturer No
AD-NPMCXJ-2
Packaging
Bulk
Description
COAX ADAPT N TO MCX
Detailed Description
Adapter Coaxial Connector N Plug, Male Pin To MCX Jack, Female Socket 75 Ohms
DataSheet
Mfr
Amphenol RF
Style
Straight
Impedance
75 Ohms
Packaging
Bulk
Body Finish
Nickel
Part Status
Active
Adapter Type
Plug to Jack
Body Material
Brass
Center Gender
Female to Male
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Adapter Series
N to MCX
Fastening Type
Snap-On, Threaded
Conversion Type
Between Series
Frequency - Max
12 GHz
Base Product Number
AD-NPM
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
MCX Jack, Female Socket
Convert From (Adapter End)
N Plug, Male Pin
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Style | Straight |
| Impedance | 75 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Part Status | Active |
| Adapter Type | Plug to Jack |
| Body Material | Brass |
| Center Gender | Female to Male |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | N to MCX |
| Fastening Type | Snap-On, Threaded |
| Conversion Type | Between Series |
| Frequency - Max | 12 GHz |
| Base Product Number | AD-NPM |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | MCX Jack, Female Socket |
| Convert From (Adapter End) | N Plug, Male Pin |
