Step1: Product

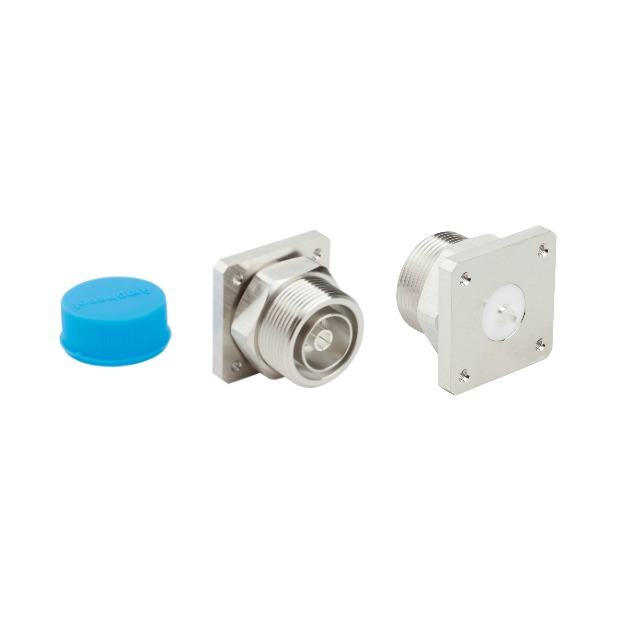

Amphenol RF 716-196
Image shown is a representation only
Manufacturer
Manufacturer No
716-196
Packaging
Bulk
Description
7/16 STRAIGHT BULKHEAD JACK, SOL
Detailed Description
7/16 DIN Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
DataSheet
Mfr
Amphenol RF
Includes
2 pcs - 1 Connector, 1 Nut
Impedance
50 Ohms
Packaging
Bulk
Body Finish
White Bronze
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Connector Style
7/16 DIN
Frequency - Max
7.5 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Solder
Base Product Number
716
Contact Termination
Solder Cup
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-40°C ~ 150°C
Center Contact Plating
Silver
Center Contact Material
Copper Alloy
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Includes | 2 pcs - 1 Connector, 1 Nut |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | White Bronze |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Connector Style | 7/16 DIN |
| Frequency - Max | 7.5 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Solder |
| Base Product Number | 716 |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -40°C ~ 150°C |
| Center Contact Plating | Silver |
| Center Contact Material | Copper Alloy |
