Step1: Product
Amphenol RF 272100-11

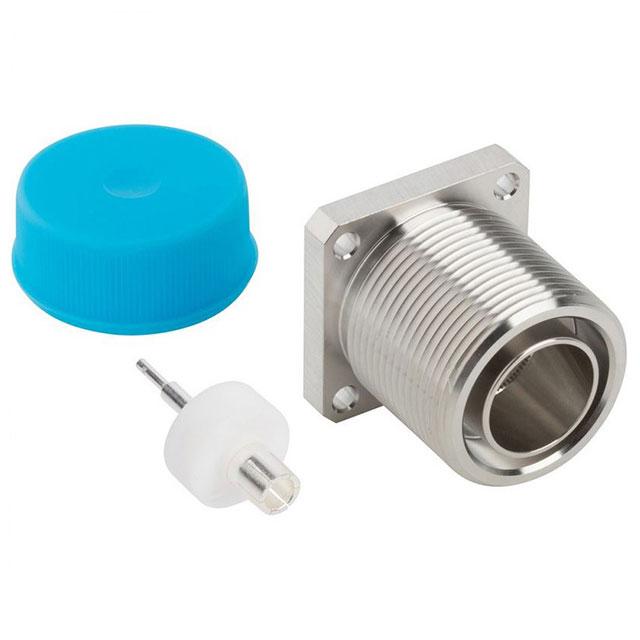

Image shown is a representation only
Manufacturer
Manufacturer No
272100-11
Packaging
Bulk
Description
CONN 7/16 DIN JACK STR 50 OHM
Detailed Description
7/16 DIN Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Datasheet
Mfr
Amphenol RF
Features
Low PIM
Includes
2 pcs - 1 Connector, 1 Contact
Impedance
50 Ohms
Packaging
Bulk
Body Finish
White Bronze
Cable Group
RG-402 (.141" Semi Rigid)
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
1500 V
Connector Style
7/16 DIN
Frequency - Max
6 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Solder
Base Product Number
272100
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 155°C
Center Contact Plating
Silver
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Features | Low PIM |
| Includes | 2 pcs - 1 Connector, 1 Contact |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | White Bronze |
| Cable Group | RG-402 (.141" Semi Rigid) |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 1500 V |
| Connector Style | 7/16 DIN |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Solder |
| Base Product Number | 272100 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 155°C |
| Center Contact Plating | Silver |
| Center Contact Material | Phosphor Bronze |
