Step1: Product
Amphenol RF 242183

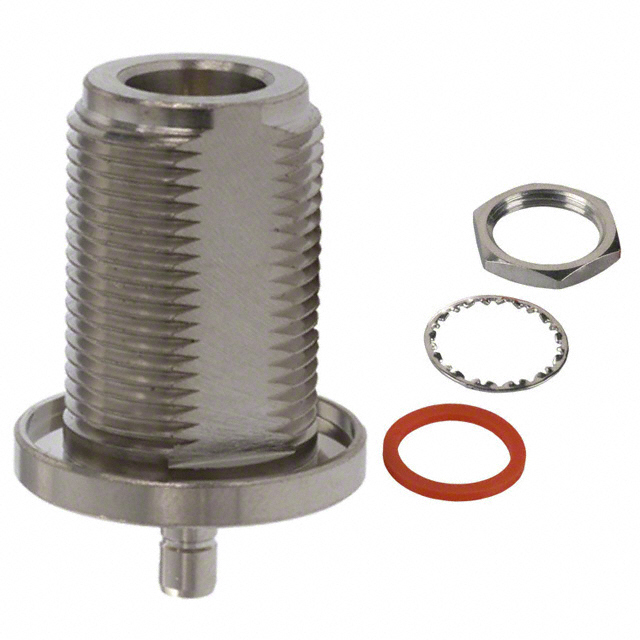

Image shown is a representation only
Manufacturer
Manufacturer No
242183
Packaging
Bag
Description
COAX ADAPT N TO SMB
Detailed Description
Adapter Coaxial Connector N Jack, Female Socket To SMB Jack, Male Pin 50 Ohms
DataSheet
Mfr
Amphenol RF
Style
Straight
Includes
4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance
50 Ohms
Packaging
Bag
Body Finish
Nickel
Part Status
Active
Adapter Type
Jack to Jack
Body Material
Brass
Center Gender
Female to Male
Mounting Type
Panel Mount
Adapter Series
N to SMB
Fastening Type
Snap-On, Threaded
Conversion Type
Between Series
Frequency - Max
4 GHz
Mounting Feature
Bulkhead
Base Product Number
2421
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
SMB Jack, Male Pin
Convert From (Adapter End)
N Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Style | Straight |
| Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Nickel |
| Part Status | Active |
| Adapter Type | Jack to Jack |
| Body Material | Brass |
| Center Gender | Female to Male |
| Mounting Type | Panel Mount |
| Adapter Series | N to SMB |
| Fastening Type | Snap-On, Threaded |
| Conversion Type | Between Series |
| Frequency - Max | 4 GHz |
| Mounting Feature | Bulkhead |
| Base Product Number | 2421 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | SMB Jack, Male Pin |
| Convert From (Adapter End) | N Jack, Female Socket |
