Step1: Product

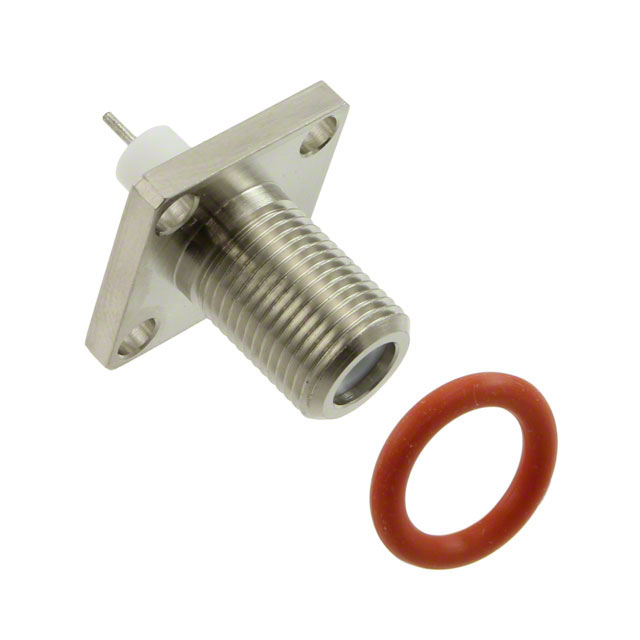

Amphenol RF 222146
Image shown is a representation only
Manufacturer
Manufacturer No
222146
Packaging
Bag
Description
CONN F JACK STR 75 OHM SOLDER
Detailed Description
F Type Connector Jack, Female Socket 75 Ohms Panel Mount Solder
DataSheet
Mfr
Amphenol RF
Features
Extended Insulation
Includes
2 pcs - 1 Connector, 1 Gasket
Impedance
75 Ohms
Packaging
Bag
Body Finish
Nickel
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Connector Style
F Type
Frequency - Max
2 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Solder
Base Product Number
2221
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Center Contact Plating
Tin
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Features | Extended Insulation |
| Includes | 2 pcs - 1 Connector, 1 Gasket |
| Impedance | 75 Ohms |
| Packaging | Bag |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Connector Style | F Type |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Solder |
| Base Product Number | 2221 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Tin |
| Center Contact Material | Brass |
