Step1: Product

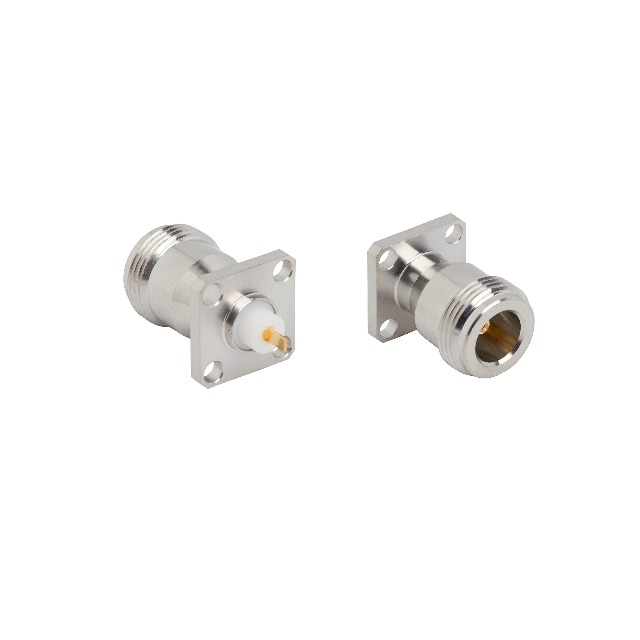

Amphenol RF 172361-10
Image shown is a representation only
Manufacturer
Manufacturer No
172361-10
Packaging
Bulk
Description
N STRAIGHT JACK, FLAT TAB, 4 HOL
Detailed Description
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Tab
DataSheet
Mfr
Amphenol RF
Impedance
50 Ohms
Packaging
Bulk
Body Finish
White Bronze
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Connector Style
N Type
Frequency - Max
11 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Solder
Base Product Number
172361
Contact Termination
Solder Tab
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | White Bronze |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Connector Style | N Type |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Solder |
| Base Product Number | 172361 |
| Contact Termination | Solder Tab |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze |
