Step1: Product
Amphenol RF 172309

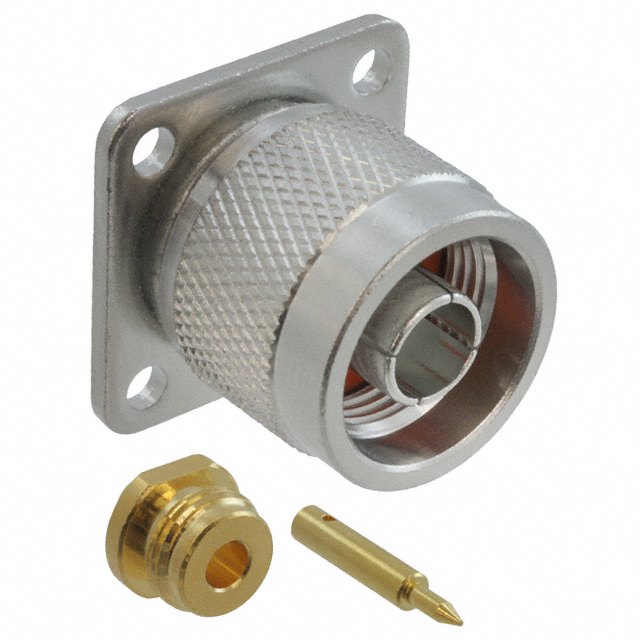

Image shown is a representation only
Manufacturer
Manufacturer No
172309
Packaging
Bag
Description
CONN N PLUG STR 50 OHM CRIMP
Detailed Description
N Type Connector Plug, Male Pin 50 Ohms Panel Mount Crimp or Solder
DataSheet
Mfr
Amphenol RF
Includes
3 pcs - 1 Connector, 1 Contact, 1 Insulator
Impedance
50 Ohms
Packaging
Bag
Body Finish
White Bronze
Cable Group
RG-402 (.141" Semi Rigid)
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Insertion Loss
0.15dB
Voltage Rating
1500 V
Connector Style
N Type
Frequency - Max
11 GHz
Number of Ports
1
Mounting Feature
Flange
Ingress Protection
Weatherproof
Shield Termination
Solder
Base Product Number
1723
Contact Termination
Crimp or Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Insulator |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | White Bronze |
| Cable Group | RG-402 (.141" Semi Rigid) |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | 0.15dB |
| Voltage Rating | 1500 V |
| Connector Style | N Type |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Ingress Protection | Weatherproof |
| Shield Termination | Solder |
| Base Product Number | 1723 |
| Contact Termination | Crimp or Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
