Step1: Product

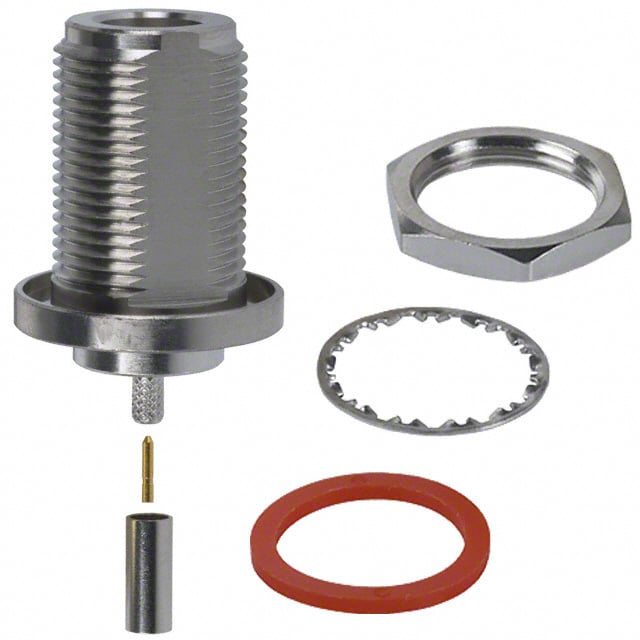

Amphenol RF 172129
Image shown is a representation only
Manufacturer
Manufacturer No
172129
Quantity
4
Availability
In Stock
Packaging
Bag
Description
CONN N JACK STR 50 OHM CRIMP
Detailed Description
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp or Solder
DataSheet
Mfr
Amphenol RF
Includes
6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance
50 Ohms
Packaging
Bag
Body Finish
White Bronze
Cable Group
RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
0.15dB
Voltage Rating
1500 V
Connector Style
N Type
Frequency - Max
11 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
Weatherproof
Shield Termination
Crimp
Base Product Number
1721
Contact Termination
Crimp or Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | White Bronze |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | 0.15dB |
| Voltage Rating | 1500 V |
| Connector Style | N Type |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | Weatherproof |
| Shield Termination | Crimp |
| Base Product Number | 1721 |
| Contact Termination | Crimp or Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze |
