Step1: Product

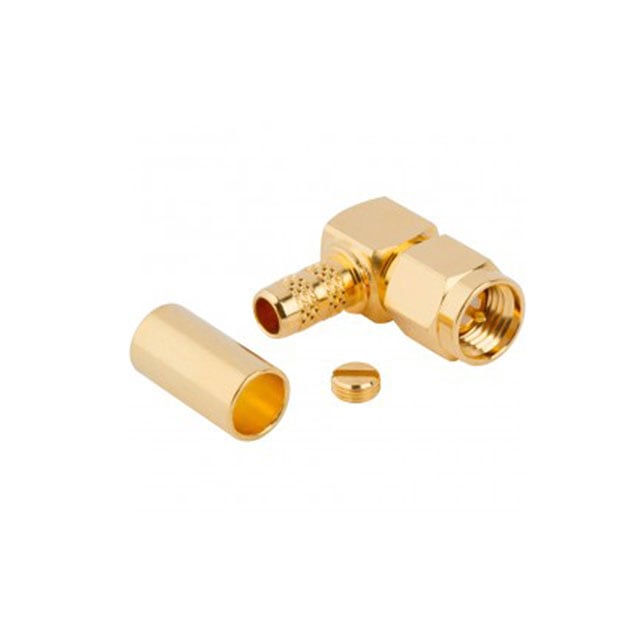

Amphenol RF 132444
Image shown is a representation only
Manufacturer
Manufacturer No
132444
Packaging
Bag
Description
CONN SMA PLUG R/A 50OHM SOLDER
Detailed Description
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
DataSheet
Mfr
Amphenol RF
Includes
4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Cable Group
LMR-195
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Insertion Loss
0.3dB
Connector Style
SMA
Frequency - Max
6 GHz
Number of Ports
1
Shield Termination
Crimp
Base Product Number
1324
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Includes | 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Cable Group | LMR-195 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | 0.3dB |
| Connector Style | SMA |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Base Product Number | 1324 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
