Step1: Product

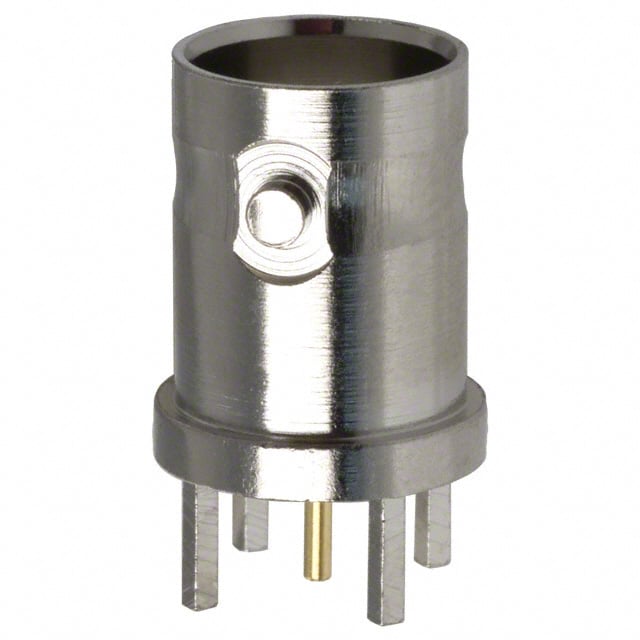

Amphenol RF 112404
Image shown is a representation only
Manufacturer
Manufacturer No
112404
Quantity
454
Availability
In Stock
Packaging
Bag
Description
CONN BNC RCPT STR 50 OHM PCB
Detailed Description
BNC Connector Jack, Female Socket 50 Ohms Through Hole Solder
DataSheet
Mfr
Amphenol RF
Impedance
50 Ohms
Packaging
Bag
Body Finish
Nickel
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Through Hole
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Insertion Loss
0.2dB
Voltage Rating
500 V
Connector Style
BNC
Frequency - Max
4 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
1124
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Center Contact Plating
Gold
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Insertion Loss | 0.2dB |
| Voltage Rating | 500 V |
| Connector Style | BNC |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | 1124 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze |
