Step1: Product

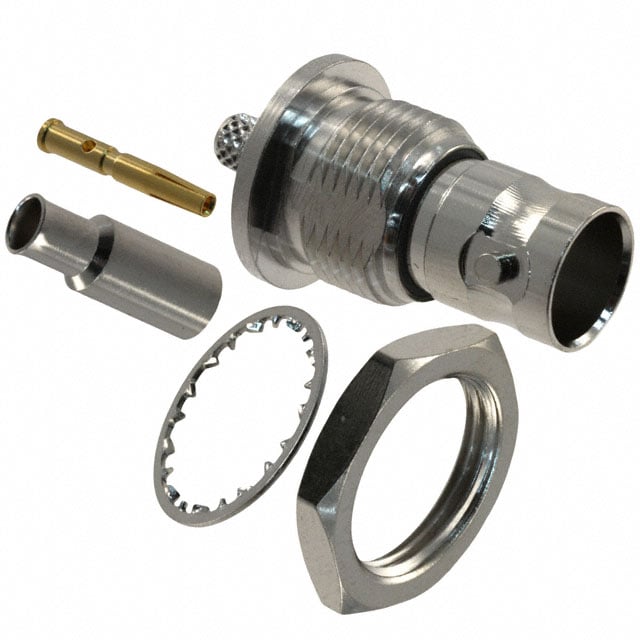

Amphenol RF 112253
Image shown is a representation only
Manufacturer
Manufacturer No
112253
Quantity
5
Availability
In Stock
Packaging
Bag
Description
CONN BNC JACK STR 75 OHM CRIMP
Detailed Description
BNC Connector Jack, Female Socket 75 Ohms Panel Mount Crimp
DataSheet
Mfr
Amphenol RF
Features
Isolated
Includes
6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut, 1 Sleeve
Impedance
75 Ohms
Packaging
Bag
Body Finish
Nickel
Cable Group
RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Part Status
Active
Body Material
Zinc Die Cast
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Voltage Rating
500 V
Connector Style
BNC
Frequency - Max
4 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Crimp
Base Product Number
1122
Contact Termination
Crimp
Dielectric Material
Polytetrafluoroethylene (PTFE)
Center Contact Plating
Gold
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Features | Isolated |
| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut, 1 Sleeve |
| Impedance | 75 Ohms |
| Packaging | Bag |
| Body Finish | Nickel |
| Cable Group | RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179 |
| Part Status | Active |
| Body Material | Zinc Die Cast |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Voltage Rating | 500 V |
| Connector Style | BNC |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Crimp |
| Base Product Number | 1122 |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze |
