Step1: Product

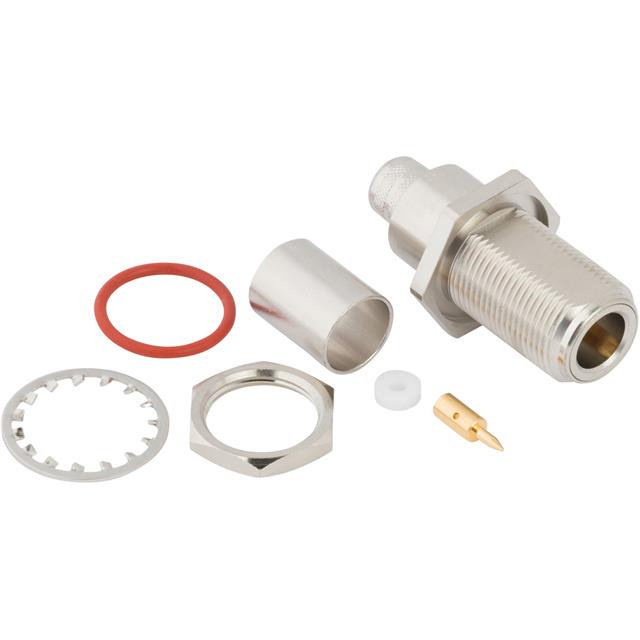

Amphenol RF 082-6768
Image shown is a representation only
Manufacturer
Manufacturer No
082-6768
Packaging
Bag
Description
N-TYPE STRAIGHT JACK RG-8 RG-213
Detailed Description
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
DataSheet
Mfr
Amphenol RF
Impedance
50 Ohms
Packaging
Bag
Body Finish
Nickel
Cable Group
RG-55
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
500 V
Connector Style
N Type
Frequency - Max
11 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
IP67 - Dust Tight, Waterproof
Shield Termination
Crimp
Base Product Number
082-67
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Nickel |
| Cable Group | RG-55 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 500 V |
| Connector Style | N Type |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Shield Termination | Crimp |
| Base Product Number | 082-67 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
