Step1: Product

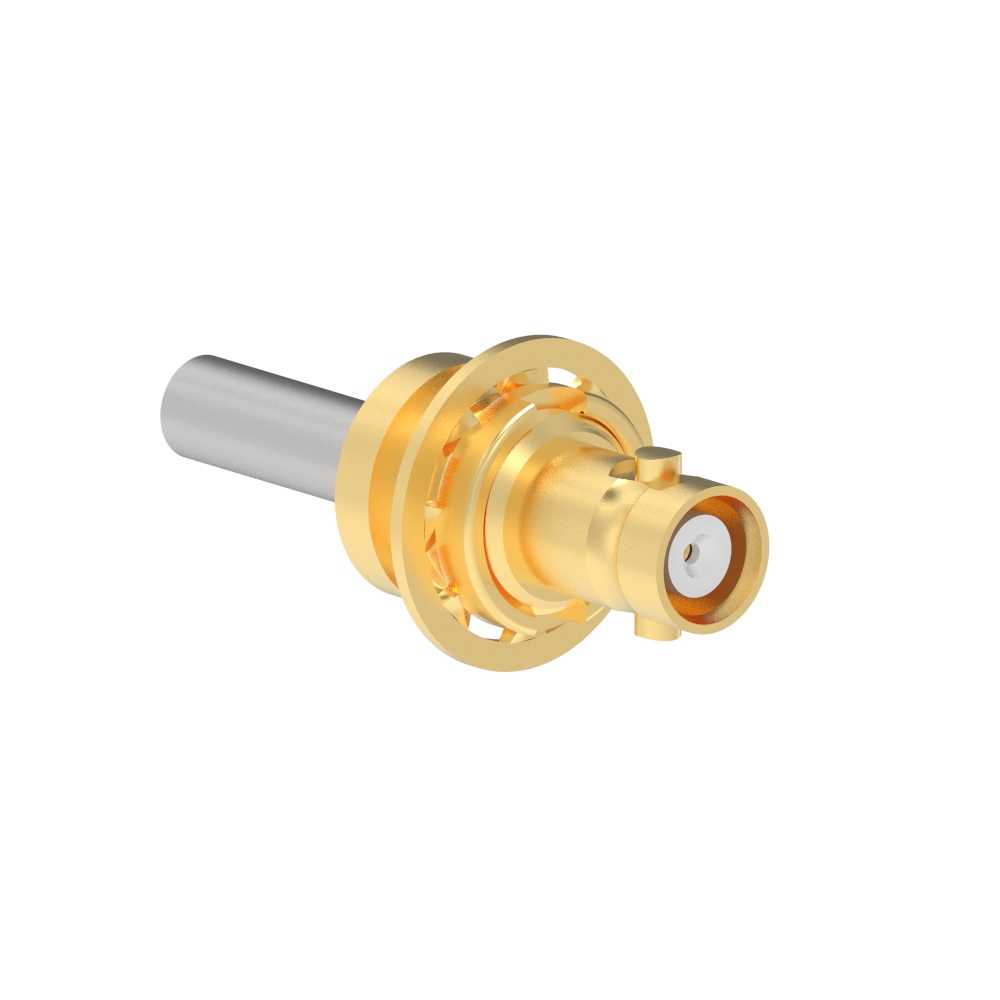

Amphenol RF 034-5045
Image shown is a representation only
Manufacturer
Manufacturer No
034-5045
Packaging
Bag
Description
HD-BNC STRAIGHT CRIMP JACK RG-17
Detailed Description
BNC, HD Connector Jack, Female Socket 50 Ohms Panel Mount Solder
DataSheet
Mfr
Amphenol RF
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Cable Group
RG-178
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
170 V
Connector Style
BNC, HD
Frequency - Max
9 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Crimp
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Cable Group | RG-178 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 170 V |
| Connector Style | BNC, HD |
| Frequency - Max | 9 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Crimp |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
