Step1: Product

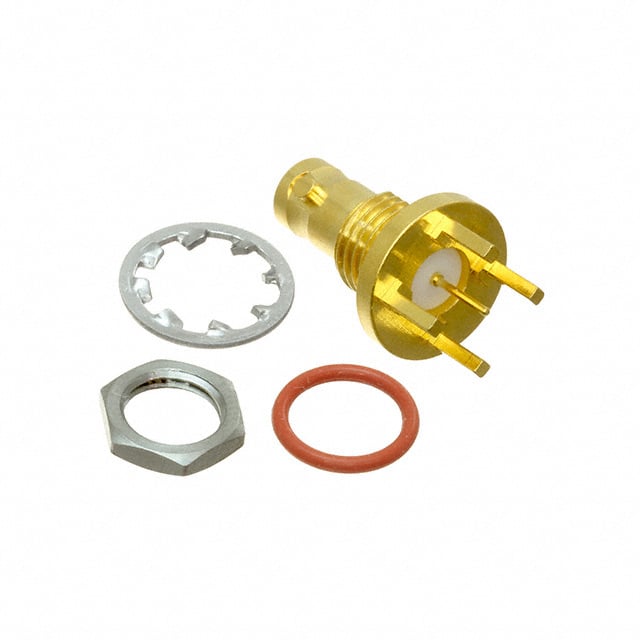

Amphenol RF 034-1099
Image shown is a representation only
Manufacturer
Manufacturer No
034-1099
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN HDBNC JACK STR 75 OHM PCB
Detailed Description
BNC, HD Connector Receptacle, Female Socket 75 Ohms Panel Mount, Through Hole Solder
DataSheet
Mfr
Amphenol RF
Includes
3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance
75 Ohms
Packaging
Bulk
Body Finish
Gold
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Female Socket
Fastening Type
Bayonet Lock
Connector Style
BNC, HD
Frequency - Max
4 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
IP67 - Dust Tight, Waterproof
Shield Termination
Solder
Base Product Number
034-10
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 75 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Bayonet Lock |
| Connector Style | BNC, HD |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Shield Termination | Solder |
| Base Product Number | 034-10 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
