Step1: Product

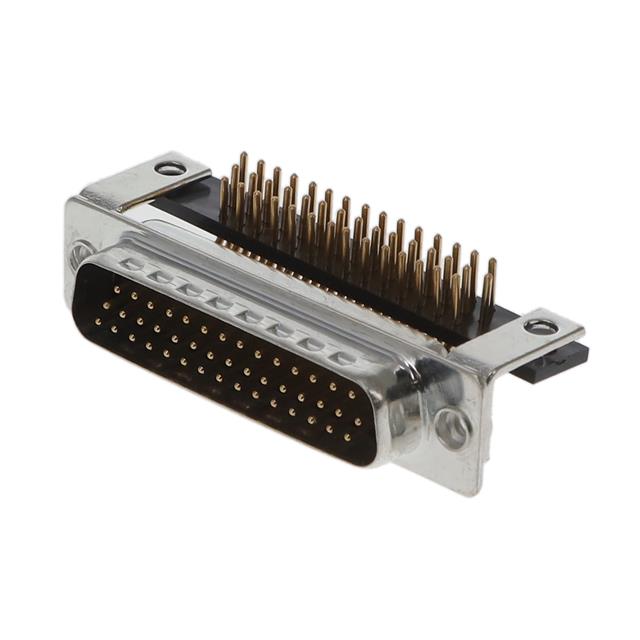

Amphenol Positronic ODD44M4R700Z/AA
Image shown is a representation only
Manufacturer
Manufacturer No
ODD44M4R700Z/AA
Packaging
Box
Description
CONN D-SUB HD PLG 44POS R/A SLDR
Detailed Description
44 Position D-Sub, High Density Plug, Male Pins Connector
DataSheet
Mfr
Amphenol Positronic
Color
Black
Series
ODD
Features
Mounting Brackets
Packaging
Box
Part Status
Active
Termination
Solder
Contact Form
Machined
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (4-40)
Number of Rows
3
Voltage Rating
300V
Backset Spacing
0.314" (7.98mm)
Connector Style
D-Sub, High Density
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Dielectric Material
Polyester, Glass Filled
Number of Positions
44
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B) High Density
| Attribute | Value |
|---|---|
| Mfr | Amphenol Positronic |
| Color | Black |
| Series | ODD |
| Features | Mounting Brackets |
| Packaging | Box |
| Part Status | Active |
| Termination | Solder |
| Contact Form | Machined |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Number of Rows | 3 |
| Voltage Rating | 300V |
| Backset Spacing | 0.314" (7.98mm) |
| Connector Style | D-Sub, High Density |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Dielectric Material | Polyester, Glass Filled |
| Number of Positions | 44 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) High Density |
