Step1: Product

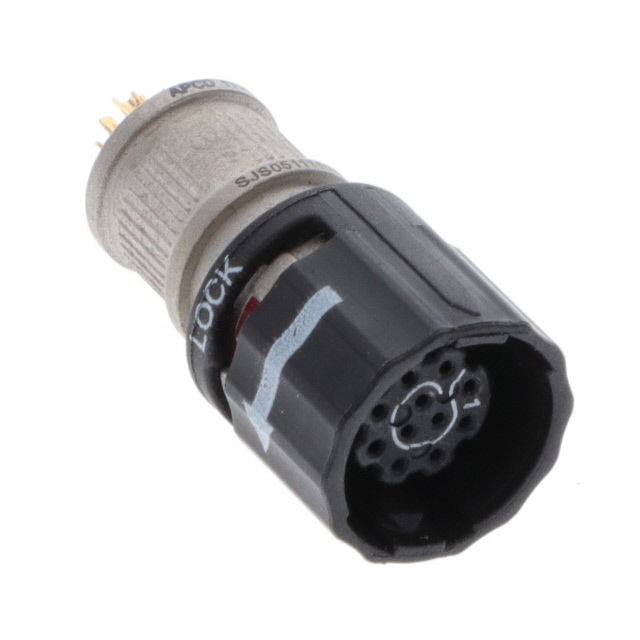

Amphenol PCD SJS0511110P
Image shown is a representation only
Manufacturer
Manufacturer No
SJS0511110P
Packaging
Bag
Description
CONN PLUG FMALE 11P SOLDER CUP
Detailed Description
11 Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
Amphenol PCD
Series
Nano-Pegasus
Features
Coupling Nut
Packaging
Bag
Shielding
Shielded
Part Status
Active
Termination
Solder Cup
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Polyetherimide (PEI)
Insert Material
Polyetherimide (PEI)
Contact Material
Bronze Alloy
Primary Material
Plastic
Ingress Protection
Environment Sealed
Base Product Number
SJS05111
Number of Positions
11
Shell Size - Insert
5
Operating Temperature
-65°C ~ 150°C
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol PCD |
| Series | Nano-Pegasus |
| Features | Coupling Nut |
| Packaging | Bag |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder Cup |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Polyetherimide (PEI) |
| Insert Material | Polyetherimide (PEI) |
| Contact Material | Bronze Alloy |
| Primary Material | Plastic |
| Ingress Protection | Environment Sealed |
| Base Product Number | SJS05111 |
| Number of Positions | 11 |
| Shell Size - Insert | 5 |
| Operating Temperature | -65°C ~ 150°C |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
