Step1: Product

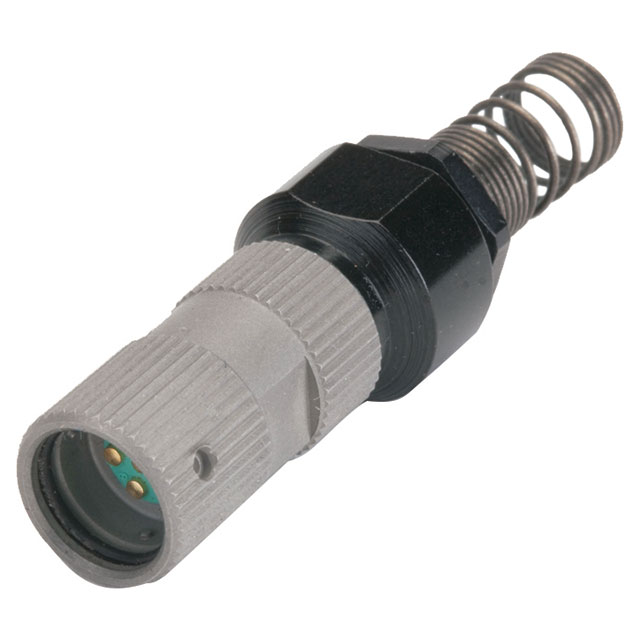

Amphenol NEXUS Technologies MAP-57-30
Image shown is a representation only
Manufacturer
Manufacturer No
MAP-57-30
Packaging
Bag
Description
CONN PLUG FMALE 7POS SOLDER CUP
Detailed Description
7 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
Mfr
Amphenol NEXUS Technologies
Color
Black, Silver
Features
Backshell, Coupling Nut, Strain Relief
Packaging
Bag
Shielding
Unshielded
Orientation
Keyed
Termination
Solder Cup
Applications
Audio, Communication Systems, Military, Video
Shell Finish
Passivated
Cable Opening
0.250" (6.35mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Stainless Steel
Voltage Rating
60V
Insert Material
Thermoplastic
Contact Material
Brass
Primary Material
Metal
Base Product Number
MAP-57
Number of Positions
7
Current Rating (Amps)
0.5A
Operating Temperature
-55°C ~ 85°C
Contact Finish - Mating
Gold
| Attribute | Value |
|---|---|
| Mfr | Amphenol NEXUS Technologies |
| Color | Black, Silver |
| Features | Backshell, Coupling Nut, Strain Relief |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Audio, Communication Systems, Military, Video |
| Shell Finish | Passivated |
| Cable Opening | 0.250" (6.35mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Stainless Steel |
| Voltage Rating | 60V |
| Insert Material | Thermoplastic |
| Contact Material | Brass |
| Primary Material | Metal |
| Base Product Number | MAP-57 |
| Number of Positions | 7 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish - Mating | Gold |
