Step1: Product

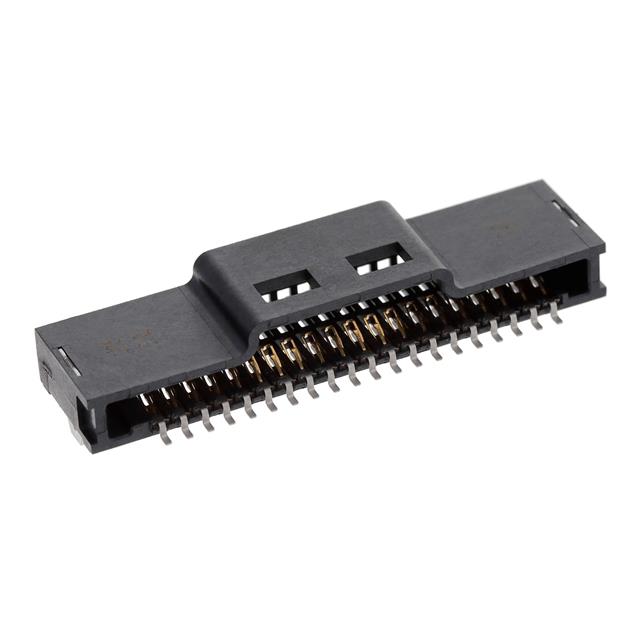

Amphenol LTW ZA-20BFRS-BA0001
Image shown is a representation only
Manufacturer
Manufacturer No
ZA-20BFRS-BA0001
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC BOTTOM 20POS 1.8MM R/A
Detailed Description
20 Position FFC, FPC Connector Contacts, Bottom 0.071" (1.80mm) Surface Mount, Right Angle
DataSheet
Pitch
0.071" (1.80mm)
Series
ZCONNECT
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Active
Termination
Solder
Manufacturer
Amphenol LTW
Housing Color
Black
Mounting Type
Surface Mount, Right Angle
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
120V
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Height Above Board
0.311" (7.90mm)
Base Product Number
ZA-20BFRS
Number of Positions
20
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 110°C
Connector/Contact Type
Contacts, Bottom
| Attribute | Value |
|---|---|
| Pitch | 0.071" (1.80mm) |
| Series | ZCONNECT |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Amphenol LTW |
| Housing Color | Black |
| Mounting Type | Surface Mount, Right Angle |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 120V |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Height Above Board | 0.311" (7.90mm) |
| Base Product Number | ZA-20BFRS |
| Number of Positions | 20 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 110°C |
| Connector/Contact Type | Contacts, Bottom |
