Amphenol Limited SCE2-B-76A07-14SN-001

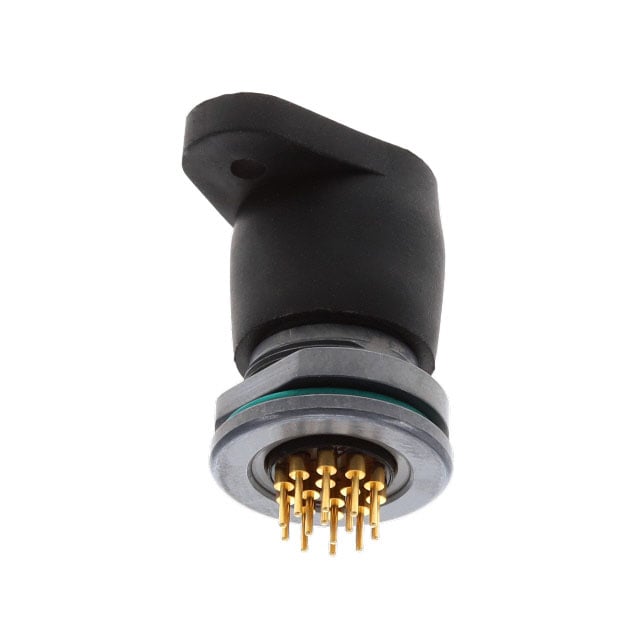

Image shown is a representation only
Manufacturer
Manufacturer No
SCE2-B-76A07-14SN-001
Packaging
Bag
Description
CONN PLUG FMALE 14POS GOLD SLDR
Detailed Description
14 Position Circular Connector Plug, Female Sockets Solder
DataSheet
Mfr
Amphenol Limited
Color
Black
Series
Terrapin
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Solder
Applications
Audio, Communication Systems, Military
Shell Finish
Black
Mounting Type
Panel Mount, Through Hole
Connector Type
Plug, Female Sockets
Fastening Type
Push-Pull
Shell Material
Brass
Voltage Rating
400VAC
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
IP68 - Dust Tight, Waterproof
Base Product Number
SCE2-B
Number of Positions
14
Shell Size - Insert
7-14
Current Rating (Amps)
1.5A, 3A, 7.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol Limited |
| Color | Black |
| Series | Terrapin |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Solder |
| Applications | Audio, Communication Systems, Military |
| Shell Finish | Black |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Push-Pull |
| Shell Material | Brass |
| Voltage Rating | 400VAC |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Base Product Number | SCE2-B |
| Number of Positions | 14 |
| Shell Size - Insert | 7-14 |
| Current Rating (Amps) | 1.5A, 3A, 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
