Step1: Product
Amphenol Limited SCE2-B-06K06-07SN

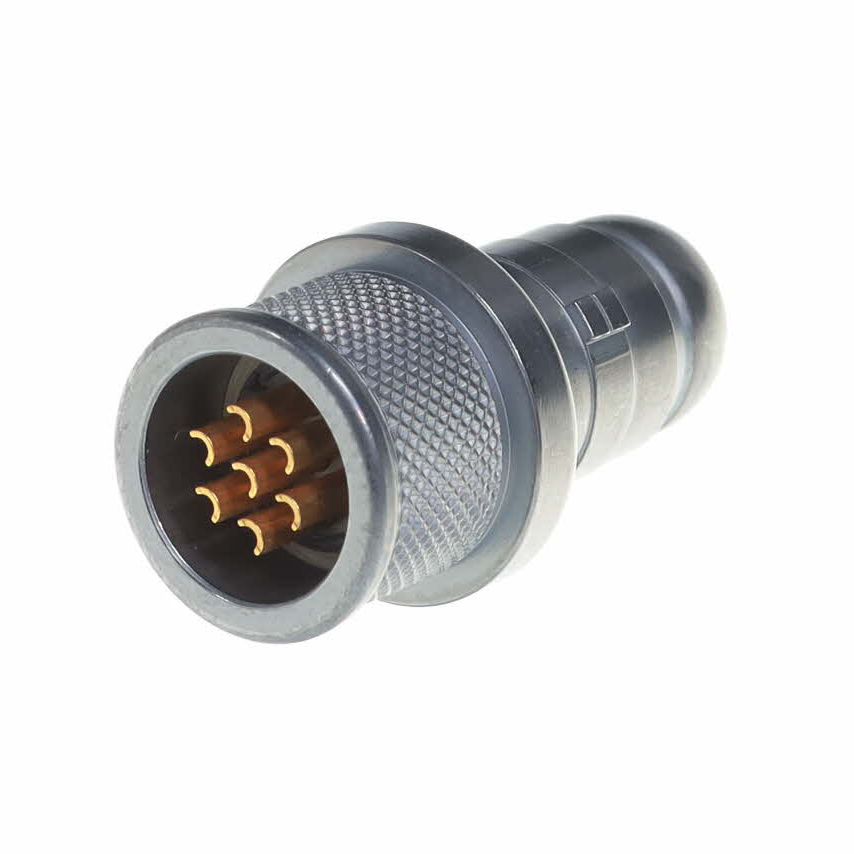

Image shown is a representation only
Manufacturer
Manufacturer No
SCE2-B-06K06-07SN
Packaging
Bag
Description
CONN PLUG FMALE 7P GOLD SLDR CUP
Detailed Description
7 Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
Amphenol Limited
Color
Black
Series
Terrapin
Features
Backshell
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Solder Cup
Applications
Audio, Communication Systems, Military
Shell Finish
Black
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Push-Pull
Shell Material
Brass
Voltage Rating
400VAC
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
IP68 - Dust Tight, Waterproof
Base Product Number
SCE2-B
Number of Positions
7
Shell Size - Insert
6-7
Current Rating (Amps)
1.5A, 3A, 7.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Brass, Black Silver
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol Limited |
| Color | Black |
| Series | Terrapin |
| Features | Backshell |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Audio, Communication Systems, Military |
| Shell Finish | Black |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Push-Pull |
| Shell Material | Brass |
| Voltage Rating | 400VAC |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Base Product Number | SCE2-B |
| Number of Positions | 7 |
| Shell Size - Insert | 6-7 |
| Current Rating (Amps) | 1.5A, 3A, 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Brass, Black Silver |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
