Step1: Product
Amphenol Industrial Operations PT02A12-14S

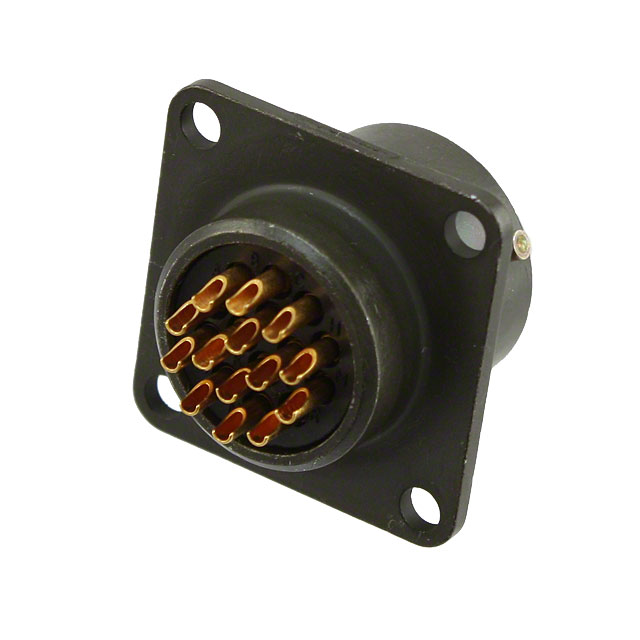

Image shown is a representation only
Manufacturer
Manufacturer No
PT02A12-14S
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT FMALE 14P SOLDER CUP
Detailed Description
14 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
Mfr
Amphenol Industrial Operations
Color
Olive Drab
Series
PT
Packaging
Bulk
Shielding
Unshielded
Orientation
N (Normal)
Termination
Solder Cup
Applications
Aerospace, Industrial, Instrumentation, Mass Transit, Military
Shell Finish
Olive Drab Chromate over Cadmium
Mounting Type
Panel Mount
Qualification
MIL-DTL-26482 Series I
Connector Type
Receptacle, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Insert Material
Neoprene
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Base Product Number
PT02A
Number of Positions
14
Shell Size - Insert
12-14
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Aluminum, Olive Drab Cadmium
| Attribute | Value |
|---|---|
| Mfr | Amphenol Industrial Operations |
| Color | Olive Drab |
| Series | PT |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Mounting Type | Panel Mount |
| Qualification | MIL-DTL-26482 Series I |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Insert Material | Neoprene |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Base Product Number | PT02A |
| Number of Positions | 14 |
| Shell Size - Insert | 12-14 |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Aluminum, Olive Drab Cadmium |
