Step1: Product
Amphenol ICC (FCI) SFV8R-2STE1HLF

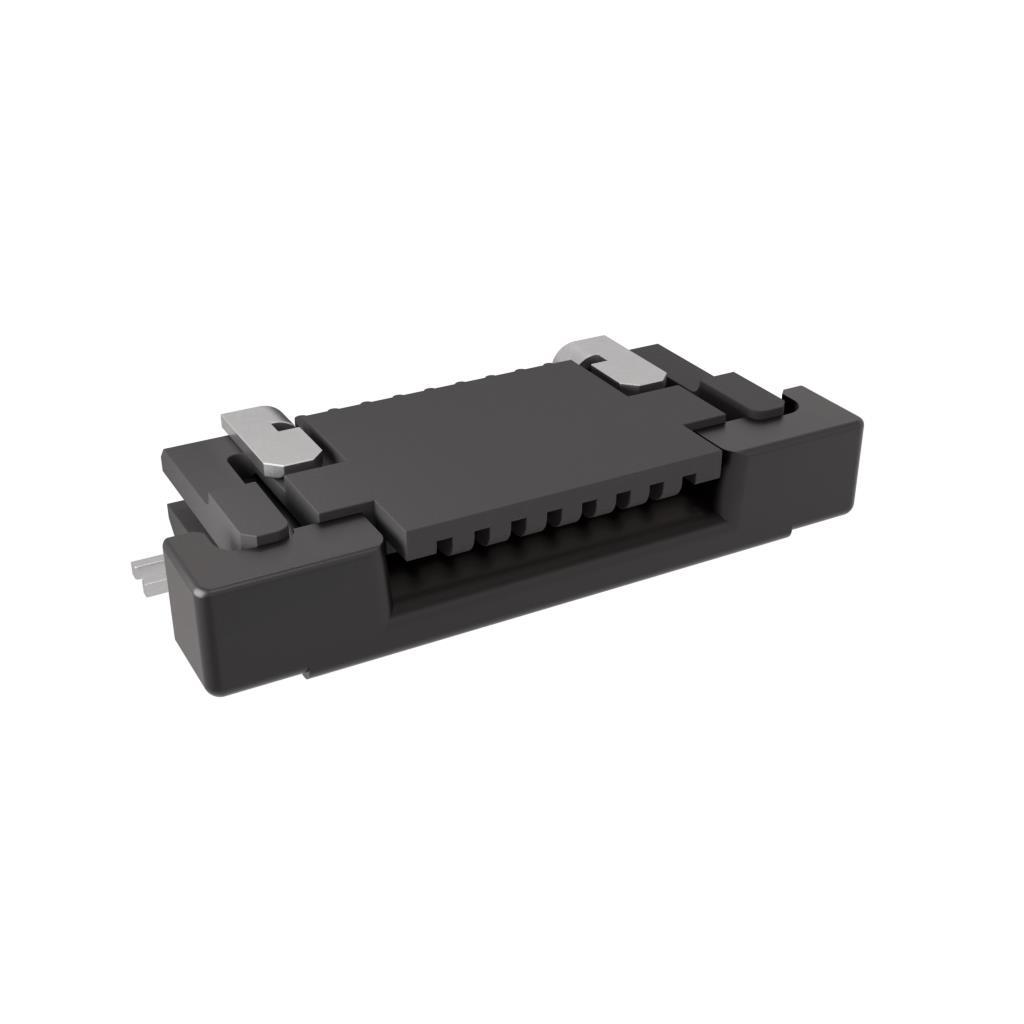

Image shown is a representation only
Manufacturer
Manufacturer No
SFV8R-2STE1HLF
Quantity
3,326
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC FPC TOP 8POS 0.5MM R/A
Detailed Description
8 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Pitch
0.020" (0.50mm)
Series
SFV-R
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Amphenol ICC (FCI)
Housing Color
Black
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Notched or Tabbed
Contact Finish
Tin
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA), Nylon, Glass Filled, Halogen Free
Actuator Material
Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
FFC, FCB Thickness
0.30mm
Height Above Board
0.071" (1.80mm)
Base Product Number
SFV8R
Number of Positions
8
Current Rating (Amps)
0.5A
Operating Temperature
-55°C ~ 105°C
Connector/Contact Type
Contacts, Top
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | SFV-R |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Amphenol ICC (FCI) |
| Housing Color | Black |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Notched or Tabbed |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA), Nylon, Glass Filled, Halogen Free |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.071" (1.80mm) |
| Base Product Number | SFV8R |
| Number of Positions | 8 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Top |
| Material Flammability Rating | UL94 V-0 |
