Step1: Product

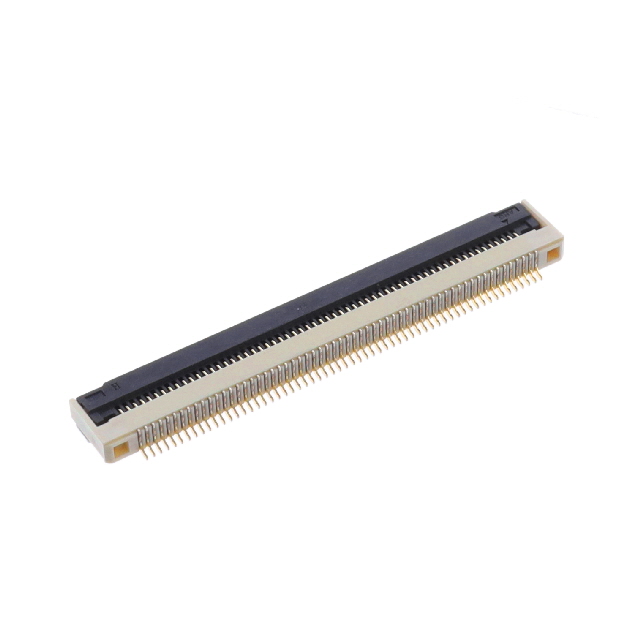

Amphenol ICC (FCI) F305-1A7H1-21060-E100
Image shown is a representation only
Manufacturer
Manufacturer No
F305-1A7H1-21060-E100
Quantity
20
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN FFC BOTTOM 60POS 0.5MM R/A
Detailed Description
60 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
DataSheet
Pitch
0.020" (0.50mm)
Series
Aorora F305
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
Amphenol ICC (FCI)
Housing Color
Natural
Mating Cycles
30
Mounting Type
Surface Mount, Right Angle
Actuator Color
Gray
Cable End Type
Notched
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material
Polyamide (PA9T), Nylon 9T, Halogen Free
FFC, FCB Thickness
0.33mm
Height Above Board
0.079" (2.00mm)
Base Product Number
F305-1A7H1
Number of Positions
60
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 105°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
3.00µin (0.076µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | Aorora F305 |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Amphenol ICC (FCI) |
| Housing Color | Natural |
| Mating Cycles | 30 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Gray |
| Cable End Type | Notched |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Polyamide (PA9T), Nylon 9T, Halogen Free |
| FFC, FCB Thickness | 0.33mm |
| Height Above Board | 0.079" (2.00mm) |
| Base Product Number | F305-1A7H1 |
| Number of Positions | 60 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 105°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Material Flammability Rating | UL94 V-0 |
