Step1: Product
Amphenol ICC (FCI) 86094327313T55F1LF

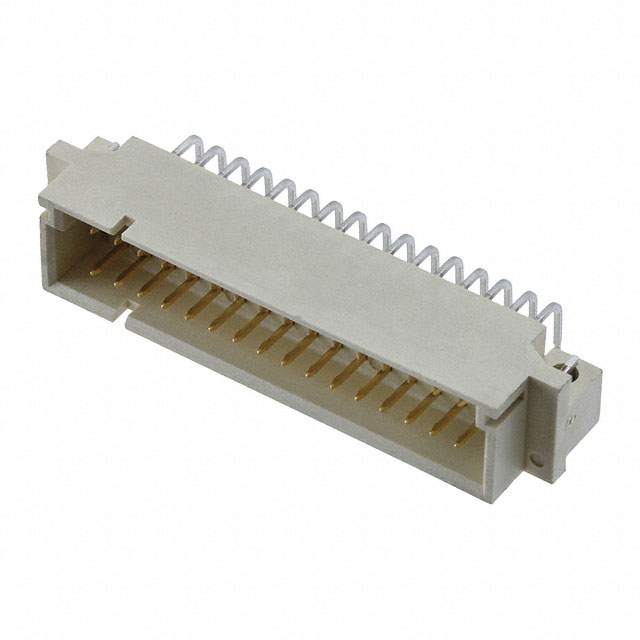

Image shown is a representation only
Manufacturer
Manufacturer No
86094327313T55F1LF
Quantity
10
Availability
In Stock
Packaging
Tray
Description
CONN DIN HDR 48POS
Detailed Description
48 Position Din Connector Header, Male Pins Gold or Gold, GXT™ Board Edge, Through Hole, Right Angle
Datasheet
Pitch
0.100" (2.54mm)
Style
C/2 (1/2 C)
Series
8609
Features
Board Lock
Packaging
Tray
Termination
Solder
Level, Class
2
Manufacturer
Amphenol ICC (FCI)
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Header, Male Pins
Contact Finish
Gold or Gold, GXT™
Number of Rows
3
Base Product Number
8609432731
Number of Positions
48
Current Rating (Amps)
2A
Material - Insulation
Polyester Thermoplastic
Operating Temperature
-55°C ~ 125°C
Number of Positions Loaded
32
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm) |
| Style | C/2 (1/2 C) |
| Series | 8609 |
| Features | Board Lock |
| Packaging | Tray |
| Termination | Solder |
| Level, Class | 2 |
| Manufacturer | Amphenol ICC (FCI) |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold or Gold, GXT™ |
| Number of Rows | 3 |
| Base Product Number | 8609432731 |
| Number of Positions | 48 |
| Current Rating (Amps) | 2A |
| Material - Insulation | Polyester Thermoplastic |
| Operating Temperature | -55°C ~ 125°C |
| Number of Positions Loaded | 32 |
| Material Flammability Rating | UL94 V-0 |
