Step1: Product

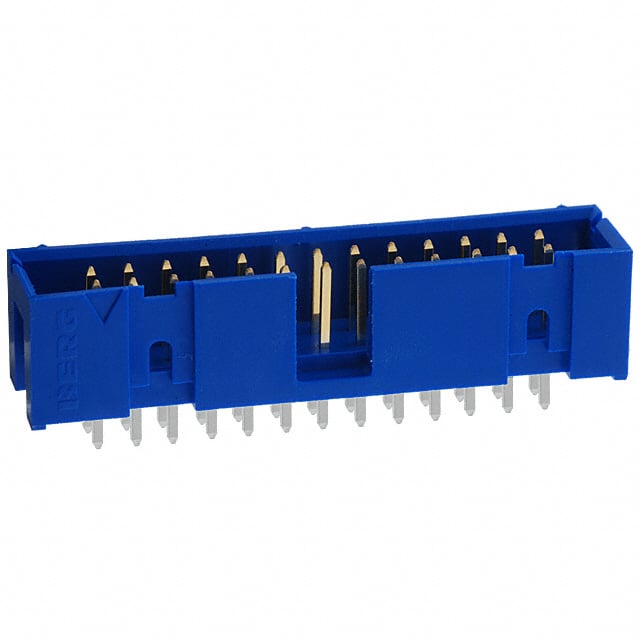

Amphenol ICC (FCI) 75869-105LF
Image shown is a representation only
Manufacturer
Manufacturer No
75869-105LF
Quantity
269
Availability
In Stock
Packaging
Tube
Description
CONN HEADER VERT 26POS 2.54MM
Detailed Description
Connector Header Through Hole 26 position 0.100" (2.54mm)
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Cable/Wire
Series
Quickie™
Features
Keying Slot
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Insulation Color
Blue
Insulation Height
0.377" (9.57mm)
Base Product Number
75869
Insulation Material
Thermoplastic, Glass Filled
Number of Positions
26
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.120" (3.05mm)
Contact Finish - Mating
Gold, GXT™
Contact Length - Mating
0.236" (6.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
78.7µin (2.00µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Cable/Wire |
| Series | Quickie™ |
| Features | Keying Slot |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Blue |
| Insulation Height | 0.377" (9.57mm) |
| Base Product Number | 75869 |
| Insulation Material | Thermoplastic, Glass Filled |
| Number of Positions | 26 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.120" (3.05mm) |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Length - Mating | 0.236" (6.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
