Step1: Product
Amphenol ICC (FCI) 62684-452100ALF

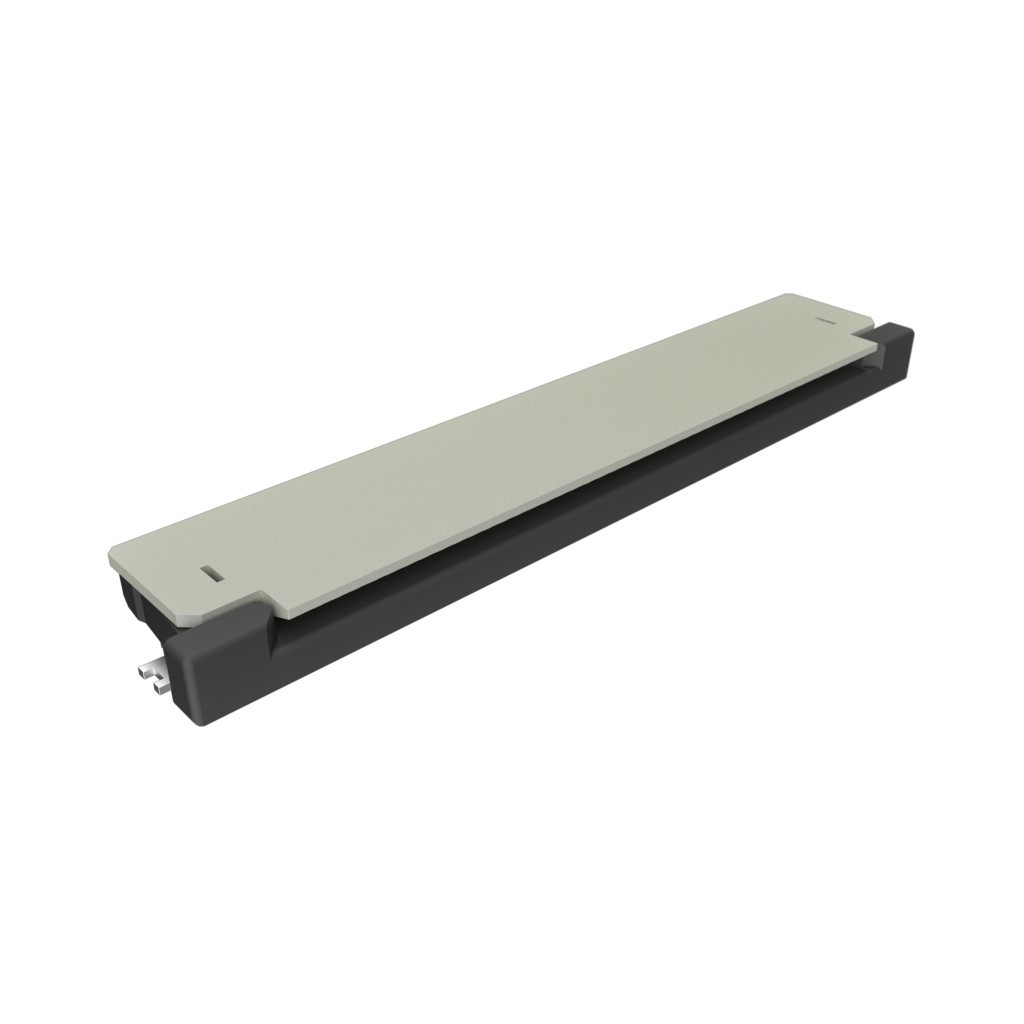

Image shown is a representation only
Manufacturer
Manufacturer No
62684-452100ALF
Quantity
3
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN FPC TOP 45POS 0.5MM R/A
Detailed Description
45 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
DataSheet
Pitch
0.020" (0.50mm)
Series
OPU
Features
Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
Amphenol ICC (FCI)
Housing Color
Beige
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Gray
Cable End Type
Notched
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA9T), Nylon 9T, Glass Filled
Actuator Material
Thermoplastic, Glass Filled
FFC, FCB Thickness
0.30mm, 0.33mm
Height Above Board
0.079" (2.00mm)
Base Product Number
62684
Number of Positions
45
Current Rating (Amps)
0.5A
Operating Temperature
-55°C ~ 85°C
Connector/Contact Type
Contacts, Top
Contact Finish Thickness
2.00µin (0.051µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | OPU |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Amphenol ICC (FCI) |
| Housing Color | Beige |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Gray |
| Cable End Type | Notched |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Actuator Material | Thermoplastic, Glass Filled |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Height Above Board | 0.079" (2.00mm) |
| Base Product Number | 62684 |
| Number of Positions | 45 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -55°C ~ 85°C |
| Connector/Contact Type | Contacts, Top |
| Contact Finish Thickness | 2.00µin (0.051µm) |
| Material Flammability Rating | UL94 V-0 |
