Step1: Product

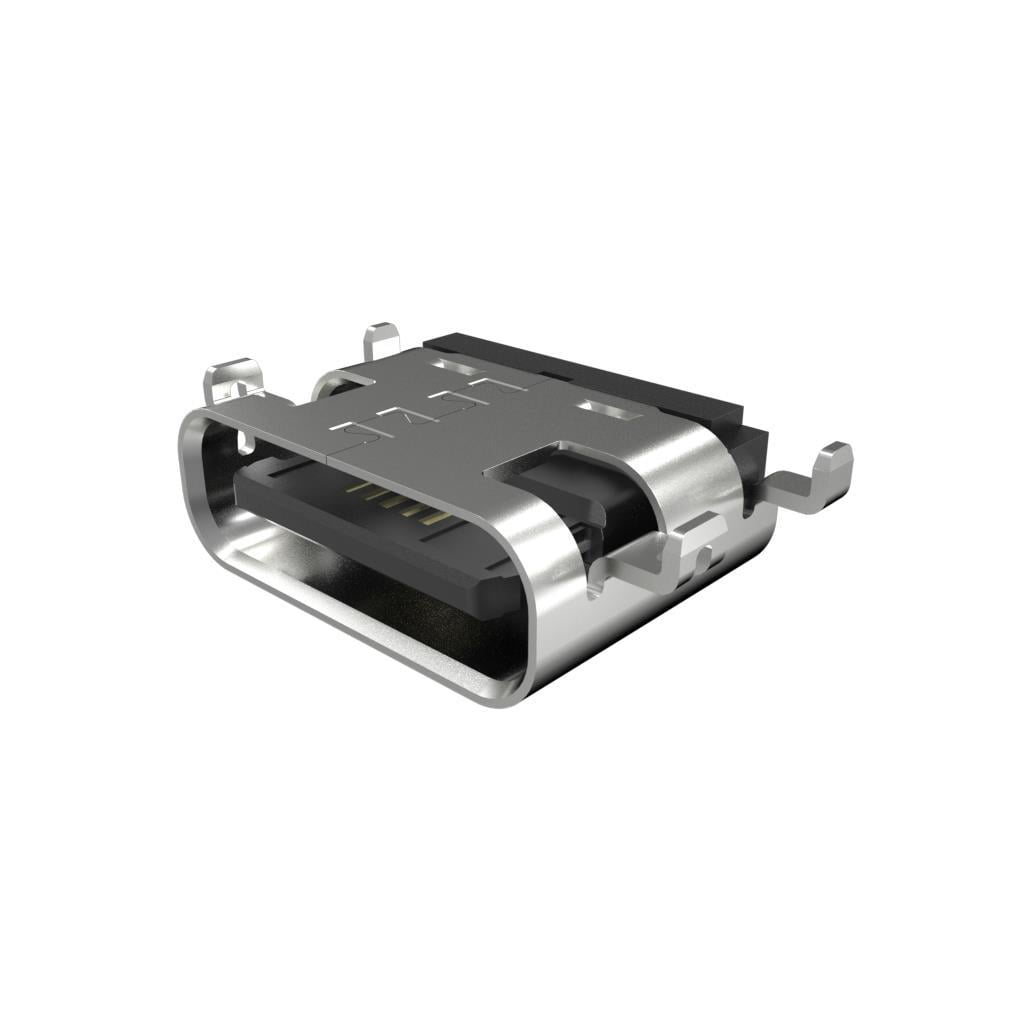

Amphenol ICC (FCI) 10174570-00B11LF
Image shown is a representation only
Manufacturer
Manufacturer No
10174570-00B11LF
Quantity
26
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
USB C RECEPTACLE R/A SMT 16P G/F
Detailed Description
USB-C (USB TYPE-C) Receptacle Connector 24 (6+18 Dummy) - Power Only 6 Pin Position Surface Mount, Right Angle
DataSheet
Gender
Receptacle
Series
10174570
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
Amphenol ICC (FCI)
Mating Cycles
10000
Mounting Type
Surface Mount, Right Angle
Connector Type
USB-C (USB TYPE-C)
Contact Finish
Gold
Number of Ports
1
Voltage - Rated
5VAC/DC
Insulation Color
Black
Mounting Feature
Horizontal
Number of Contacts
24 (6+18 Dummy) - Power Only 6 Pin
Current Rating (Amps)
5A
Operating Temperature
-25°C ~ 85°C
Shell/Shielding Material
Steel, Stainless
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | 10174570 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Amphenol ICC (FCI) |
| Mating Cycles | 10000 |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Number of Ports | 1 |
| Voltage - Rated | 5VAC/DC |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Number of Contacts | 24 (6+18 Dummy) - Power Only 6 Pin |
| Current Rating (Amps) | 5A |
| Operating Temperature | -25°C ~ 85°C |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
