Step1: Product

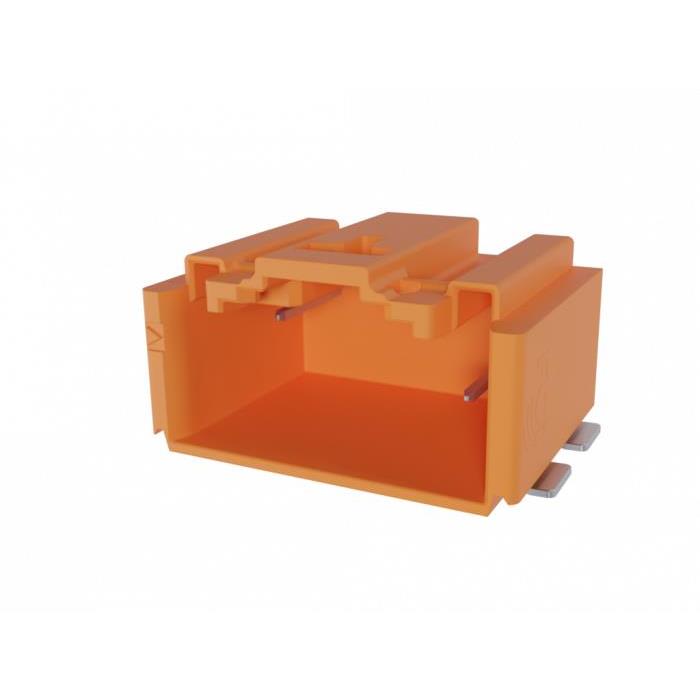

Amphenol ICC (FCI) 10170438-10802KLF
Image shown is a representation only
Manufacturer
Manufacturer No
10170438-10802KLF
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MICROSPACE HIGH VOLTAGE SELECTIV
Detailed Description
Connector Header Surface Mount, Right Angle 8 position 0.350" (8.89mm)
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Cable/Wire
Series
MicroSpace™
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.350" (8.89mm)
Voltage Rating
1200V
Contact Material
Copper Alloy
Insulation Color
Orange
Insulation Height
0.350" (8.89mm)
Insulation Material
Thermoplastic
Number of Positions
8
Row Spacing - Mating
0.096" (2.43mm)
Current Rating (Amps)
4A
Operating Temperature
-40°C ~ 130°C
Contact Finish - Mating
Tin
Number of Positions Loaded
2
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
3.00µin (0.076µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Cable/Wire |
| Series | MicroSpace™ |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.350" (8.89mm) |
| Voltage Rating | 1200V |
| Contact Material | Copper Alloy |
| Insulation Color | Orange |
| Insulation Height | 0.350" (8.89mm) |
| Insulation Material | Thermoplastic |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.096" (2.43mm) |
| Current Rating (Amps) | 4A |
| Operating Temperature | -40°C ~ 130°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | 2 |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
