Step1: Product

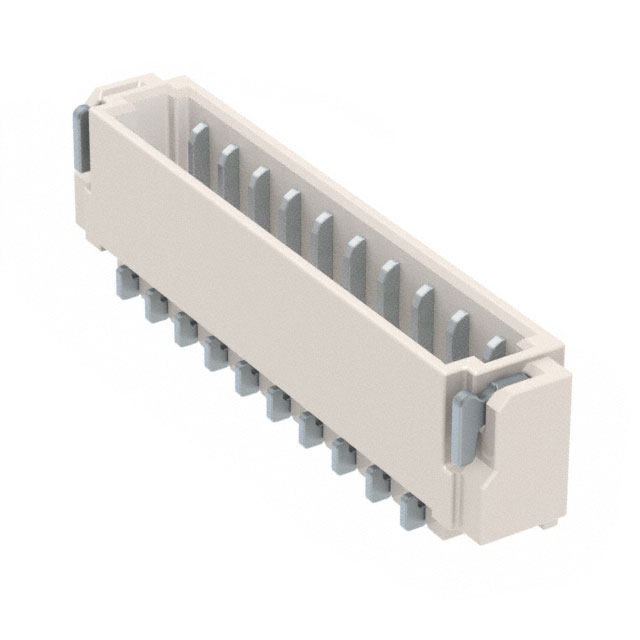

Amphenol ICC (FCI) 10144041-10011LF
Image shown is a representation only
Manufacturer
Manufacturer No
10144041-10011LF
Quantity
95
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD R/A 10POS 0.8MM
Detailed Description
Connector Header Surface Mount, Right Angle 10 position 0.031" (0.80mm)
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Cable/Wire
Series
Minitek® 0.80mm
Features
Glow Wire Compliant, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.031" (0.80mm)
Voltage Rating
30VAC
Contact Material
Copper Alloy
Insulation Color
Cream
Insulation Height
0.069" (1.75mm)
Base Product Number
10144041
Insulation Material
Liquid Crystal Polymer (LCP), Halogen Free
Number of Positions
10
Contact Finish - Post
Tin
Current Rating (Amps)
1A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Cable/Wire |
| Series | Minitek® 0.80mm |
| Features | Glow Wire Compliant, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.031" (0.80mm) |
| Voltage Rating | 30VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Cream |
| Insulation Height | 0.069" (1.75mm) |
| Base Product Number | 10144041 |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Number of Positions | 10 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
