Step1: Product

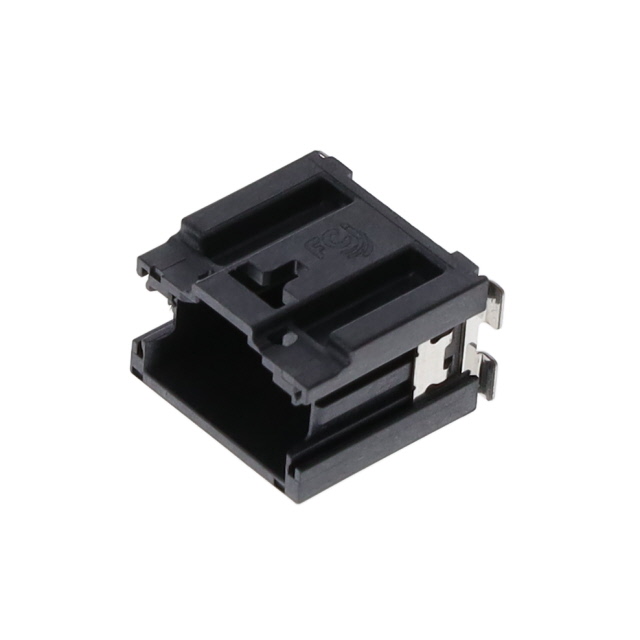

Amphenol ICC (FCI) 10143535-106KLF
Image shown is a representation only
Manufacturer
Manufacturer No
10143535-106KLF
Quantity
5
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN MICROSPACE HDR-ASSY STG T
Detailed Description
Connector Header Surface Mount 6 position 0.100" (2.54mm)
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Cable/Wire
Series
MicroSpace™ 1.27mm
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
48V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.526" (13.35mm)
Base Product Number
10143535
Insulation Material
Thermoplastic
Number of Positions
6
Row Spacing - Mating
0.096" (2.43mm)
Contact Finish - Post
Tin
Current Rating (Amps)
4A
Operating Temperature
-40°C ~ 130°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
118.1µin (3.00µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Cable/Wire |
| Series | MicroSpace™ 1.27mm |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 48V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.526" (13.35mm) |
| Base Product Number | 10143535 |
| Insulation Material | Thermoplastic |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.096" (2.43mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 4A |
| Operating Temperature | -40°C ~ 130°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
