Step1: Product

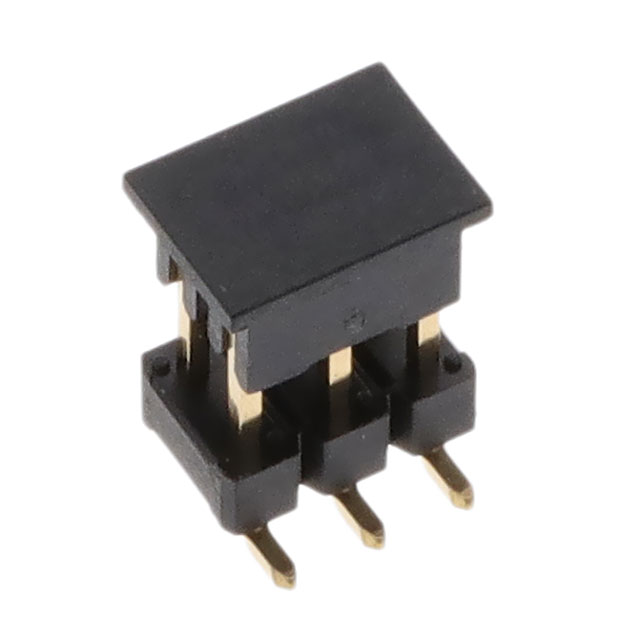

Amphenol ICC (FCI) 10129383-906001ALF
Image shown is a representation only
Manufacturer
Manufacturer No
10129383-906001ALF
Quantity
271
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD 6POS 2.54MM
Detailed Description
Connector Header Surface Mount 6 position 0.100" (2.54mm)
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Board or Cable
Series
EconoStik™ 10129383
Features
Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Applications
General Purpose, Industrial, Medical, Telecommunications
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header, Cuttable
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
110VDC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.100" (2.54mm)
Base Product Number
10129383
Insulation Material
Thermoplastic
Number of Positions
6
Row Spacing - Mating
0.100" (2.54mm)
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Gold
Contact Length - Mating
0.230" (5.84mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
1.00µin (0.025µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Board or Cable |
| Series | EconoStik™ 10129383 |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header, Cuttable |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 110VDC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.100" (2.54mm) |
| Base Product Number | 10129383 |
| Insulation Material | Thermoplastic |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.230" (5.84mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
