Step1: Product

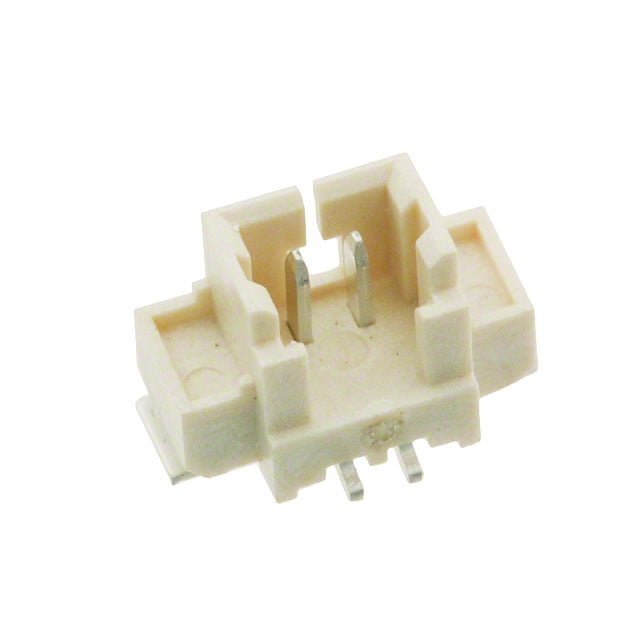

Amphenol ICC (FCI) 10114828-10102LF
Image shown is a representation only
Manufacturer
Manufacturer No
10114828-10102LF
Quantity
1945
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD 2POS 1.25MM
Detailed Description
Connector Header Surface Mount 2 position 0.049" (1.25mm)
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Cable/Wire
Series
10114828
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 3 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
125V
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.185" (4.70mm)
Base Product Number
10114828
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
2
Contact Finish - Post
Tin
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.089" (2.25mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Cable/Wire |
| Series | 10114828 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 3 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 125V |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.185" (4.70mm) |
| Base Product Number | 10114828 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 2 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.089" (2.25mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
